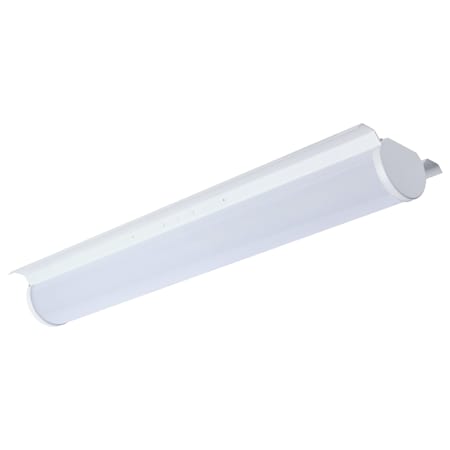

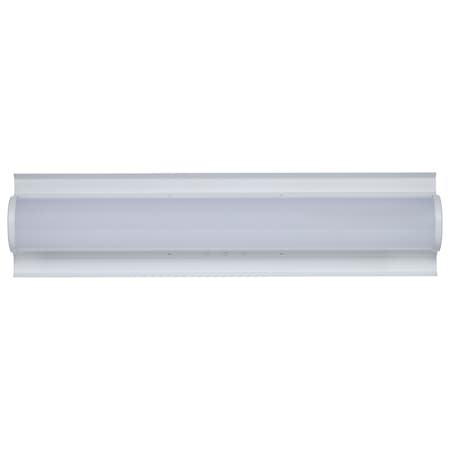

Nuvo Lighting Single Light 24" Long Integrated LED Commercial Retrofit Strip Light
Model: 65/1030|Item: bci5074090
Details
SATCO NUVO's LED Strip Retrofit Kit, 65-1030, is an energy-efficient upgrade for existing fluorescent fixtures. Designed with adjustable mounting strips to fit housings 2.75"–5.25" wide, this 2ft kit features field-selectable CCT and wattage, a frosted polycarbonate lens, and a durable steel body for even light and long life. The 0-10V dimming driver ensures smooth performance, and DLC Premium certification supports rebate eligibility. Fast, lens-free installation reduces labor and costs-ideal for warehouses, workshops, and other commercial or industrial spaces.
Features:
- Constructed from steel
- Capable of being dimmed
- UL listed for damp locations
- Comes with polycarbonate shade
- For use in commercial settings
- Integrated LED lighting
- Covered under a 5 year manufacturer warranty
Specifications:
- Number of Light Source(s): 1
- Bulbs Included: Yes
- Wattage: 15, 20, 25 watts
- Color Temperature: 3500K, 4000K, 5000K
- Color Rendering Index: 80 CRI
- Lumens: 1950, 2600, 3250
- Average Hours: 50000
Dimensions:
- Height: 3-5/16" (83.82 mm)
- Depth: 5-7/8" (149.606 mm)
- Length: 24" (609.6 mm)
- Product Weight: 1.98 lbs
Dimensions and Measurements
Depth | 5.89 in. |
Height | 3.3 in. |
Length | 24 in. |
Nominal Length | 24 in. |
Product Weight | 1.98 lbs. |
Width | 24 in. |
Dimensions and Measurements
Depth | 5.89 in. |
Height | 3.3 in. |
Length | 24 in. |
Nominal Length | 24 in. |
Product Weight | 1.98 lbs. |
Width | 24 in. |
Included Components
Bulb Included | Yes |
Shade | Yes |
Included Components
Bulb Included | Yes |
Shade | Yes |
Characteristics and Features
Adjustable Color Temperature | Yes |
Bulb Base | Integrated LED |
Bulb Type | LED |
Color Temperature | 3500K, 4000K, 5000K |
Dimmable | Yes |
LED | Yes |
Material | Steel |
Number of Light Source(s) | 1 |
Retrofit | Yes |
Shade Color | Frosted |
Shade Material | Polycarbonate |
Shade Shape | Half Cylinder |
Vapor Tight | No |
Characteristics and Features
Adjustable Color Temperature | Yes |
Bulb Base | Integrated LED |
Bulb Type | LED |
Color Temperature | 3500K, 4000K, 5000K |
Dimmable | Yes |
LED | Yes |
Material | Steel |
Number of Light Source(s) | 1 |
Retrofit | Yes |
Shade Color | Frosted |
Shade Material | Polycarbonate |
Shade Shape | Half Cylinder |
Vapor Tight | No |
Electrical and Operational Information
Average Hours | 50000 Hours |
Color Rendering Index (CRI) | 80 |
Lumens | 1950, 2600, 3250 |
Power Source | Hardwired |
Voltage | 120, 277 |
Wattage | 15, 20, 25 |
Electrical and Operational Information
Average Hours | 50000 Hours |
Color Rendering Index (CRI) | 80 |
Lumens | 1950, 2600, 3250 |
Power Source | Hardwired |
Voltage | 120, 277 |
Wattage | 15, 20, 25 |
Warranty and Product Information
Certifications | UL |
Country Of Origin | Vietnam |
Location Rating | Damp Location |
Manufacturer Warranty | 5 Year |
Warranty and Product Information
Certifications | UL |
Country Of Origin | Vietnam |
Location Rating | Damp Location |
Manufacturer Warranty | 5 Year |
