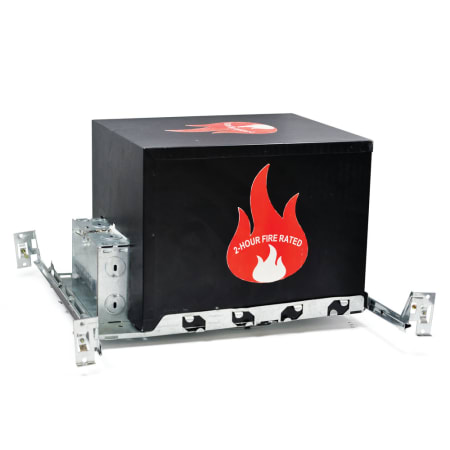

Nora Lighting New Construction Fire Rated Recessed Housing for 4" Trim - IC Rated and Airtight

Specification grade fire-rated new construction housing. The double wall fixture incorporates a non-combustible fiber insulation to prevent passage of flames, toxic gases, ignitable gasses into ceiling plenums. The cULus listed housing is rated for a minimum of 2 hours protection. The noncombustible fiber fill also acts as sound deadening material eliminating the transfer of sound between floors. Suitable for commercial, multi-family and residential applications.

Features:

• Steel construction housing and frame
• Two hour fire rating
• IC rated and airtight
• Prewired 0.03" thick galvanized steel, with seven 1/2" knockouts, four Romex pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out)
• Includes quick connect for LED compatible trims
• Compatible with Iolite (NIR), Cobalt (NLCBC), and Onyx (NOX) series trim

Dimensions:

• Height: 9"
• Width: 10"
• Depth: 14"
• Cutout Size: 4"
• Trim Size: 4"

Electrical Specification:

• Bulb Included: No
• Wattage: 16.6w
• Voltage: 120v
• Energy Star: Yes
