The Monogram ZV36RSFSS has been discontinued
** See similar or replacement items below **
Item # bci3901589
Monogram 620 CFM 36 Inch Wide Under Cabinet Range Hood with Utensil Racks and Removable Grease Trays
Model: ZV36RSFSS|Item: bci3901589
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Features:
- With up to 620 CFM of ventilation power and 4 different speeds to choose from, this range hood keeps your kitchen free of smoke and odors caused by cooking
- Stainless steel exterior provides a timeless look that stands out in any kitchen
- Dishwasher-safe stainless steel mesh filters make clean up a breeze and keep your air clean
- Task lighting is provides by 2 halogen lights
- Includes a stainless steel utensil rod to keep all of your cooking tools close at hand
- Hood can be installed beneath a cabinet or wall mounted with the matching 8-to-10-ft. duct cover
- Manufacturer warranty includes 2 year limited coverage
Specifications:
- CFM: 620
- Sones: 9
- Duct Size: 10" Round
- Duct Discharge: Horizontal, Vertical
- Bulb Type: Halogen

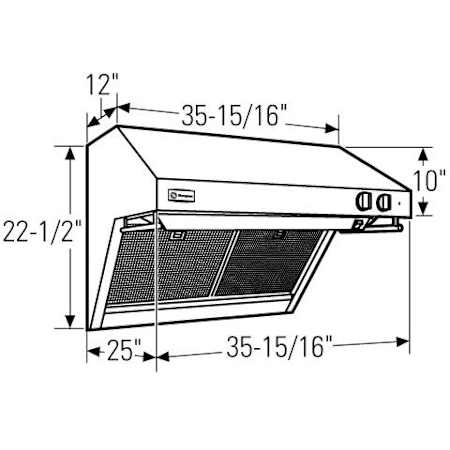

- Width: 36"
- Depth: 25"
- Height: 22-1/2"
- Ceiling Height: 120"
- Height Above Cooktop: 30" to 36"
- Voltage: 120V
Dimensions and Measurements
Ceiling Height (Max) | 120 in. |
CFM | 620 |
CFM (High) | 620 |
Depth | 25 in. |
Duct Size | 10" Round |
Height | 22.5 in. |
Height Above Cooktop | 30" to 36" |
Height Above Cooktop (Max) | 36 in. |
Height Above Cooktop (Min) | 30 in. |
Nominal Width | 36 in. |
Product Weight | 110 lbs. |
Width | 36 in. |
Dimensions and Measurements
Ceiling Height (Max) | 120 in. |
CFM | 620 |
CFM (High) | 620 |
Depth | 25 in. |
Duct Size | 10" Round |
Height | 22.5 in. |
Height Above Cooktop | 30" to 36" |
Height Above Cooktop (Max) | 36 in. |
Height Above Cooktop (Min) | 30 in. |
Nominal Width | 36 in. |
Product Weight | 110 lbs. |
Width | 36 in. |
Included Components
Available Without Blower | No |
Convertible to Ductless / Recirculating | No |
Ductless | No |
Light Included | Yes |
Included Components
Available Without Blower | No |
Convertible to Ductless / Recirculating | No |
Ductless | No |
Light Included | Yes |
Characteristics and Features
Blower Type | Built-In |
Bulb Type | Halogen |
Control Type | Knob |
Duct Discharge | Vertical, Horizontal |
Filter Type | Mesh Filters |
Installation Type | Full Installation |
Number of Bulbs | 2 |
Characteristics and Features
Blower Type | Built-In |
Bulb Type | Halogen |
Control Type | Knob |
Duct Discharge | Vertical, Horizontal |
Filter Type | Mesh Filters |
Installation Type | Full Installation |
Number of Bulbs | 2 |
Electrical and Operational Information
Amperage | 6.5 |
Frequency | 60 Hertz |
Sones | 9 |
Speeds | 4 |
Voltage | 120 |
Electrical and Operational Information
Amperage | 6.5 |
Frequency | 60 Hertz |
Sones | 9 |
Speeds | 4 |
Voltage | 120 |
Warranty and Product Information
Certifications | UL |
Manufacturer Warranty | 2 Year Limited |
Outdoor Approved | No |
Warranty and Product Information
Certifications | UL |
Manufacturer Warranty | 2 Year Limited |
Outdoor Approved | No |
