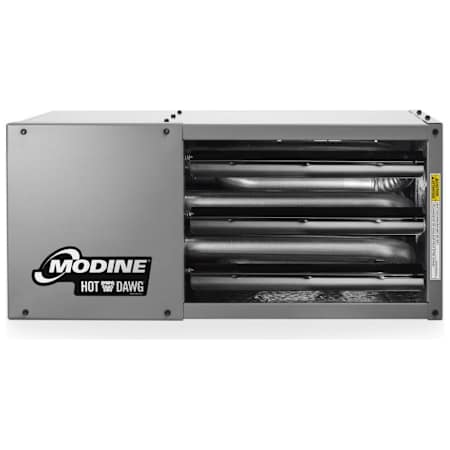

Modine 125,000 BTU - Power Vented Natural Gas Unit Heater - Stainless Steel Heat Exchanger - 80% Thermal Efficiency

The Modine name has become synonymous with quality unit heaters in millions of homes and workshops all across the world. The HD125 is no exception to this rule, with sound engineering and reliability to last decades on end. Field wiring connections and electrical knockouts allow the HD125 to be installed nearly anywhere, while it's quiet operation and a natural, neutral coloring allow it to blend in seamlessly in any location.

Product Information:

Hush-Puppy Quiet Operation
• The HD125 is incredibly quiet during operation. This allows the heater to be inconspicuous yet effective at all times - it will not distract you from your work.
Low Profile Design
• The HD125 has an incredibly low profile design, measuring in at a height of only 20.5 inches. It can be mounted with a one inch clearance from the ceiling on only two angle brackets, keeping the unit heater out of your way.
Stainless Steel Heat Exchanger
• The stainless steel heat exchanger has incredible corrosion resistance, high heat transfer and is protected by a full 10 year warranty by Modine.
Electric Knockouts
• Electric wiring knockouts and field wiring connections on the HD125 keep installation costs low and save time during both installation and maintenance for your contractor by simplifying all required electrical work.
Permanently Lubricated Motor
• The motor on the HD125 has a permanent, long lasting lubricant straight from the factory. This means that the motor never has to be oiled, reducing maintenance costs, general wear and tear, and operational noise.
Power Venting System
• The power venting system quickly and efficiently brings flue exhaust from the unit heater to the outdoors, and requires minimal installation labor. This keeps installation related costs as low as possible.
Baked Polyester Paint
• The HD125 features a neutral colored baked on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
Modine Installation
• Installation by a professional installer is required by the manufacturer.

General Information:

• Product Category: Unit Heater
• Fuel Type: Natural Gas
• Vent Type: Power Vent
• Installation Type: Suspended

Performance:

• BTU Heating: 125,000
• Maximum BTU Input: 125,000
• Maximum Air Flow: 1980 CFM

Electrical Data:

• Voltage: 115V
• Electrical Phases: 1
• Frequency: 60 Hz

Dimensions:

• Pipe Inside Diameter: 4"
• Gas Connection Size: 1/2"
• Height: 20-1/2"
• Width: 35-1/2"
• Depth: 31"
• Product Weight: 125 lbs

Product Assurance:

• Certifications: CSA
• Made in America
• Warranty: 10 Year Heat Exchanger and 2 Year Parts
