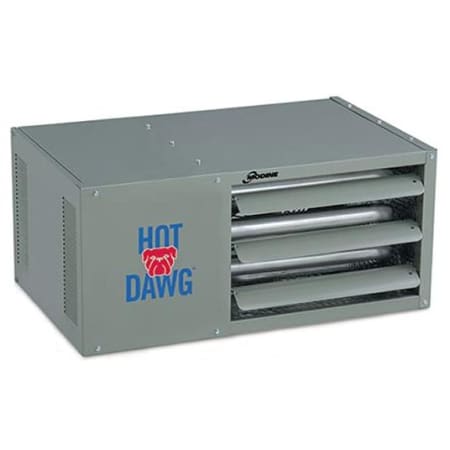

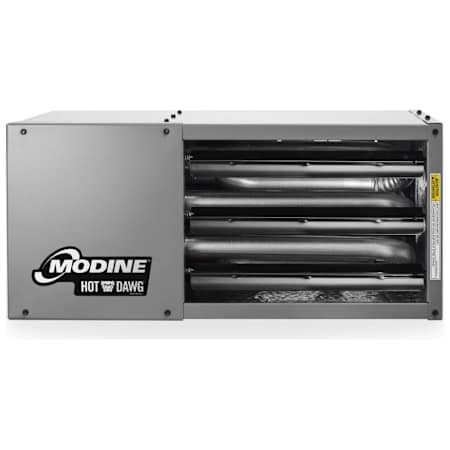

Modine Hot Dawg HD - 100,000 BTU - Unit Heater - LP - 80% Thermal Efficiency - Power Vented - Stainless Steel Heat Exchanger

The Modine name has become synonymous with quality unit heaters in millions of homes and workshops all across the world. The HD100 is no exception to this rule, with sound engineering and reliability to last decades on end. Field wiring connections and electrical knockouts allow the HD100 to be installed nearly anywhere, while it's quiet operation and a natural, neutral coloring allow it to blend in seamlessly in any location.

Product Information:

• Hush-Puppy Quiet Operation: The HD100 is incredibly quiet during operation. This allows the heater to be inconspicuous yet effective at all times - it will not distract you from your work.


• Low Profile Design: The HD100 has an incredibly low profile design, measuring in at a height of only 20.5 inches. It can be mounted with a one inch clearance from the ceiling on only two angle brackets, keeping the unit heater out of your way.


• Stainless Steel Heat Exchanger: The stainless steel heat exchanger has incredible corrosion resistance, high heat transfer and is protected by a full 10 year warranty by Modine.


• Electric Knockouts: Electric wiring knockouts and field wiring connections on the HD100 keep installation costs low and save time during both installation and maintenance for your contractor by simplifying all required electrical work.


• Permanently Lubricated Motor: The motor on the HD100 has a permanent, long lasting lubricant straight from the factory. This means that the motor never has to be oiled, reducing maintenance costs, general wear and tear, and operational noise.


• Power Venting System: The power venting system quickly and efficiently brings flue exhaust from the unit heater to the outdoors, and requires minimal installation labor. This keeps installation related costs as low as possible.


• Baked Polyester Paint: The HD100 features a neutral colored baked on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.


• Modine Installation: Installation by a professional installer is required by the manufacturer.


• Finger Proof Fan Guard: This model features a Finger Proof Fan Guard standard.

General Information:

• Product Category: Unit Heater
• Fuel Type: Liquid Propane
• Vent Type: Power Vent

Performance:

• BTU Heating: 82,000

Electrical Data:

• Voltage: 115V
• Electrical Phases: 1
• Frequency: 60 Hz

Dimensions:

• Gas Connection Size: 1/2"
• Height: 20-1/2"
• Width: 35-1/2"
• Depth: 31"
• Product Weight: 125 lbs

Product Assurance:

• Warranty: 10 Year Heat Exchanger and 2 Year Parts
