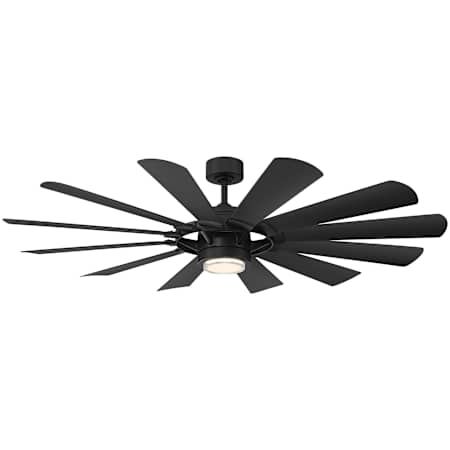

Modern Forms Wyndmill 65" 12 Blade Indoor / Outdoor Smart LED Ceiling Fan - 3500K
Model: FR-W2201-65L-35-MB|Item: bci4360544
Details
A modern industrial design that performs well in both indoor and outdoor environments, generating a substantial amount of airflow. This wet rated weather resistant ceiling fan housing is constructed with a durable aluminum and operates smoothly despite the harshest elements. WYNDMILL features a powerful DC motor that runs smoothly and quietly while operating 70 percent more efficiently than AC motors. The convenient, 6-speed set-up can be controlled locally using the included remote control or remotely using the Modern Forms app which intuitively integrates with your existing smart home devices.
Features:
- Constructed from aluminum
- Comes with acrylic shade
- Fan is controllable by mobile app and remote (included)
- Can be installed on vaulted ceilings
- Fixture includes 6" downrod(s)
- Integrated LED lighting
- Capable of being dimmed
- CSA, ETL, and UL listed for wet locations
- Energy Star certified
- Title 20 and Title 24 compliant
- Covered by Modern Forms's 1 year parts, 2 year finish, 5 year LED, and lifetime motor manufacturer warranties
Dimensions:
- Height: 17"
- Width: 65"
- Product Weight: 42 lbs
- Wire Length: 80"
- Canopy Width: 6"
- Canopy Depth: 6"
Blade Specifications:
- Number of Blades: 12
- Blade Span: 65"
- Blades Included: Yes
- Blade Pitch: 14°
- Reversible Blades: No
- Fan Blade Material: ABS
- Blade Length: 29-3/8"
Motor Specifications:
- Speeds: 6
- CFM: 6432
- RPM: 80
Electrical Specifications:
- Bulb Base: Integrated LED
- Light Kit Included: Yes
- Wattage: 66 watts
- Voltage: 120 volts
- Amperage: 0.4
- Color Temperature: 3500K
- Color Rendering Index: 90CRI
- Lumens: 1600
Dimensions and Measurements
Blade Length | 29.38 in. |
Blade Pitch | 14 Degrees |
Blade Span | 65 in. |
Canopy Depth | 6 in. |
Canopy Width | 6 in. |
CFM | 6432 |
CFM (High) | 9505 |
CFM (Low) | 3359 |
Downrod Size(s) | 6 in. |
Height | 17 in. |
Motor Size | 168 mm |
Product Weight | 42 lbs. |
Width | 65 in. |
Wire Length | 80 in. |
Dimensions and Measurements
Blade Length | 29.38 in. |
Blade Pitch | 14 Degrees |
Blade Span | 65 in. |
Canopy Depth | 6 in. |
Canopy Width | 6 in. |
CFM | 6432 |
CFM (High) | 9505 |
CFM (Low) | 3359 |
Downrod Size(s) | 6 in. |
Height | 17 in. |
Motor Size | 168 mm |
Product Weight | 42 lbs. |
Width | 65 in. |
Wire Length | 80 in. |
Included Components
Blades Included | Yes |
Bulb Included | Yes |
Controller Included | Yes |
Downrod(s) Included | Yes |
Includes Receiver | Yes |
Light Kit Included | Yes |
Shade | Yes |
Uplight Included | No |
Included Components
Blades Included | Yes |
Bulb Included | Yes |
Controller Included | Yes |
Downrod(s) Included | Yes |
Includes Receiver | Yes |
Light Kit Included | Yes |
Shade | Yes |
Uplight Included | No |
Characteristics and Features
Adjustable Color Temperature | No |
App Compatibility | Amazon Alexa, Control4, Google Assistant, Modern Forms App, SmartThings |
Blade Finish | Black, Light Wood, Medium Wood |
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 3500K |
Control Type | Mobile App, Remote |
Device Compatibility | Android, Apple iOS Device |
Dimmable | Yes |
Fan Blade Material | ABS |
Fan Type | Hanging |
LED | Yes |
Light Direction | Down Lighting |
Light Kit Compatible | Yes |
Low Ceiling Adaptable | Yes |
Marine Grade | No |
Material | Aluminum |
Motor | DC Motor |
Number of Blades | 12 |
Number of Light Source(s) | 1 |
Replaceable LED Module | Yes |
Reversible Blades | No |
Reversible Motor | Yes |
RGB | No |
Shade Color | Frosted |
Shade Material | Acrylic |
Shade Shape | Disk |
Sloped Ceiling Compatible | Yes |
Smart Home | Yes |
Specialty Fan Type | Windmill Fan |
Theme | Farmhouse |
Vintage Edison Bulb | No |
Wireless Communication | Bluetooth, WiFi |
Characteristics and Features
Adjustable Color Temperature | No |
App Compatibility | Amazon Alexa, Control4, Google Assistant, Modern Forms App, SmartThings |
Blade Finish | Black, Light Wood, Medium Wood |
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 3500K |
Control Type | Mobile App, Remote |
Device Compatibility | Android, Apple iOS Device |
Dimmable | Yes |
Fan Blade Material | ABS |
Fan Type | Hanging |
LED | Yes |
Light Direction | Down Lighting |
Light Kit Compatible | Yes |
Low Ceiling Adaptable | Yes |
Marine Grade | No |
Material | Aluminum |
Motor | DC Motor |
Number of Blades | 12 |
Number of Light Source(s) | 1 |
Replaceable LED Module | Yes |
Reversible Blades | No |
Reversible Motor | Yes |
RGB | No |
Shade Color | Frosted |
Shade Material | Acrylic |
Shade Shape | Disk |
Sloped Ceiling Compatible | Yes |
Smart Home | Yes |
Specialty Fan Type | Windmill Fan |
Theme | Farmhouse |
Vintage Edison Bulb | No |
Wireless Communication | Bluetooth, WiFi |
Electrical and Operational Information
Amperage | 0.4 |
Average Hours | 50000 Hours |
Color Rendering Index (CRI) | 90 |
Energy Efficiency (CFM / Watt) | 207 |
Lumens | 1600 |
Power Source | Hardwired |
Reverse Switch Location | Remote, Smart Device |
RPM | 80 |
RPM (High) | 118 |
RPM (Low) | 42 |
Speeds | 6 |
Voltage | 120 |
Wattage | 66 |
Electrical and Operational Information
Amperage | 0.4 |
Average Hours | 50000 Hours |
Color Rendering Index (CRI) | 90 |
Energy Efficiency (CFM / Watt) | 207 |
Lumens | 1600 |
Power Source | Hardwired |
Reverse Switch Location | Remote, Smart Device |
RPM | 80 |
RPM (High) | 118 |
RPM (Low) | 42 |
Speeds | 6 |
Voltage | 120 |
Wattage | 66 |
Warranty and Product Information
Certifications | CSA, ETL, UL |
Collection | Wyndmill |
Country Of Origin | China |
Energy Star | Yes |
Location Rating | Wet Location |
Manufacturer Warranty | 1 Year Parts, 2 Year Finish, 5 Year LED, Lifetime Motor |
Outdoor Approved | Yes |
Title 20 Compliant | Yes |
Title 24 | Yes |
Warranty and Product Information
Certifications | CSA, ETL, UL |
Collection | Wyndmill |
Country Of Origin | China |
Energy Star | Yes |
Location Rating | Wet Location |
Manufacturer Warranty | 1 Year Parts, 2 Year Finish, 5 Year LED, Lifetime Motor |
Outdoor Approved | Yes |
Title 20 Compliant | Yes |
Title 24 | Yes |
