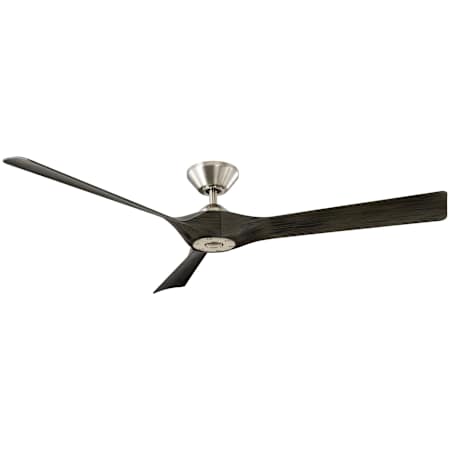

Modern Forms Torque 58" 3 Blade Indoor / Outdoor Smart Ceiling Fan
Model: FR-W2204-58-BN/EB|Item: bci4330478
Details
The TORQUE Smart Fan by Modern Fans makes a powerful design statement in any indoor or exterior space in residential, hospitality and commercial settings. A distinctive silhouette blends well with a minimalist body and uniquely formed blades. The Energy Star rated TORQUE is a stunner that connects with the exclusive Modern Forms app via Wi-Fi from anywhere in the world to create schedules, integrate with smart home devices, and more. Includes a Bluetooth hand-held remote which controls the light, six speeds of the fan, and the direction, backwards or forwards. Utilizes a powerful DC motor inside to keep things running smooth, quiet and 70% more efficient than traditional AC fans.
Features:
- Constructed from aluminum
- Fan is controllable by mobile app and remote (included)
- Can be installed on vaulted ceilings
- Capable of being mounted on low ceilings
- Fixture includes 4-1/2" downrod(s)
- CSA, ETL, and UL listed for wet locations
- Energy Star certified
- Covered by Modern Forms's 1 year parts, 2 year finish, and lifetime motor manufacturer warranties
Dimensions:
- Height: 10-5/8"
- Width: 58"
- Product Weight: 16 lbs
- Wire Length: 80"
- Canopy Width: 7"
- Canopy Depth: 7"
Blade Specifications:
- Number of Blades: 3
- Blade Span: 58"
- Blades Included: Yes
- Blade Pitch: 16°
- Reversible Blades: No
- Fan Blade Material: ABS
- Blade Length: 25-1/2"
Motor Specifications:
- Speeds: 6
- CFM: 3917
- RPM: 101
Electrical Specifications:
- Light Kit Included: No
- Max Wattage: 33 watts
- Voltage: 120 volts
- Amperage: 0.3
Dimensions and Measurements
Blade Length | 25.5 in. |
Blade Pitch | 16 Degrees |
Blade Span | 58 in. |
Canopy Depth | 7 in. |
Canopy Width | 7 in. |
CFM | 3917 |
CFM (High) | 5765 |
CFM (Low) | 1650 |
Downrod Size(s) | 4.5 in. |
Height | 10.6 in. |
Motor Size | 120 mm |
Product Weight | 16 lbs. |
Width | 58 in. |
Wire Length | 80 in. |
Dimensions and Measurements
Blade Length | 25.5 in. |
Blade Pitch | 16 Degrees |
Blade Span | 58 in. |
Canopy Depth | 7 in. |
Canopy Width | 7 in. |
CFM | 3917 |
CFM (High) | 5765 |
CFM (Low) | 1650 |
Downrod Size(s) | 4.5 in. |
Height | 10.6 in. |
Motor Size | 120 mm |
Product Weight | 16 lbs. |
Width | 58 in. |
Wire Length | 80 in. |
Included Components
Blades Included | Yes |
Controller Included | Yes |
Downrod(s) Included | Yes |
Includes Receiver | Yes |
Light Kit Included | No |
Shade | No |
Included Components
Blades Included | Yes |
Controller Included | Yes |
Downrod(s) Included | Yes |
Includes Receiver | Yes |
Light Kit Included | No |
Shade | No |
Characteristics and Features
App Compatibility | Amazon Alexa, Control4, Google Assistant, Modern Forms App, SmartThings |
Blade Finish | Black, Dark Wood, White |
Control Type | Mobile App, Remote |
Device Compatibility | Android, Apple iOS Device |
Dimmable | No |
Fan Blade Material | ABS |
Fan Type | Hanging |
Light Kit Compatible | No |
Low Ceiling Adaptable | Yes |
Marine Grade | No |
Material | Aluminum |
Motor | DC Motor |
Number of Blades | 3 |
Reversible Blades | No |
Reversible Motor | Yes |
Sloped Ceiling Compatible | Yes |
Smart Home | Yes |
Theme | Contemporary |
Wireless Communication | Bluetooth, WiFi |
Characteristics and Features
App Compatibility | Amazon Alexa, Control4, Google Assistant, Modern Forms App, SmartThings |
Blade Finish | Black, Dark Wood, White |
Control Type | Mobile App, Remote |
Device Compatibility | Android, Apple iOS Device |
Dimmable | No |
Fan Blade Material | ABS |
Fan Type | Hanging |
Light Kit Compatible | No |
Low Ceiling Adaptable | Yes |
Marine Grade | No |
Material | Aluminum |
Motor | DC Motor |
Number of Blades | 3 |
Reversible Blades | No |
Reversible Motor | Yes |
Sloped Ceiling Compatible | Yes |
Smart Home | Yes |
Theme | Contemporary |
Wireless Communication | Bluetooth, WiFi |
Electrical and Operational Information
Amperage | 0.3 |
Energy Efficiency (CFM / Watt) | 175 |
Power Source | Hardwired |
Reverse Switch Location | Remote, Smart Device |
RPM | 101 |
RPM (High) | 162 |
RPM (Low) | 40 |
Speeds | 6 |
Voltage | 120 |
Wattage | 33 |
Electrical and Operational Information
Amperage | 0.3 |
Energy Efficiency (CFM / Watt) | 175 |
Power Source | Hardwired |
Reverse Switch Location | Remote, Smart Device |
RPM | 101 |
RPM (High) | 162 |
RPM (Low) | 40 |
Speeds | 6 |
Voltage | 120 |
Wattage | 33 |
Warranty and Product Information
Certifications | CSA, ETL, UL |
Collection | Torque |
Country Of Origin | China |
Energy Star | Yes |
Location Rating | Wet Location |
Manufacturer Warranty | 1 Year Parts, 2 Year Finish, Lifetime Motor |
Outdoor Approved | Yes |
Title 20 Compliant | Yes |
Title 24 | Yes |
Warranty and Product Information
Certifications | CSA, ETL, UL |
Collection | Torque |
Country Of Origin | China |
Energy Star | Yes |
Location Rating | Wet Location |
Manufacturer Warranty | 1 Year Parts, 2 Year Finish, Lifetime Motor |
Outdoor Approved | Yes |
Title 20 Compliant | Yes |
Title 24 | Yes |
