Modern Fan Co. Stratos 42" or 52" 4 Blade Ceiling Fan with Custom Blade and Control Options

Features:

• Die cast aluminum fan body
• Blades constructed of plywood
• Includes (1) 4.5" and (1) 10" downrod
• Suitable for damp location

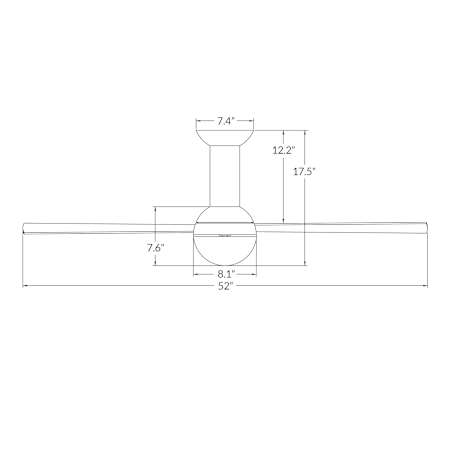

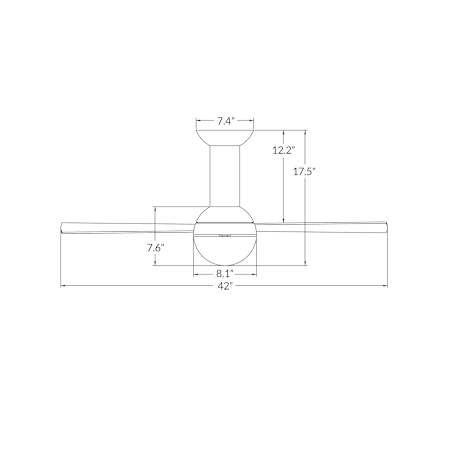

Dimensions:

• Height: 17-1/2"
• Width: 42", 52"
• Canopy Diameter: 7-3/8"

Blade Options:

It is important to choose a fan size suitable for your needs and the size of your room. As a general rule, for rooms between 75 to 175 square feet, fans with a 42" blade span will provide optimum airflow. When installing in rooms up to 350 square feet, fans with a 52" blade span are recommended.

• 42" Blade Span
• Airflow: 5059.75 CFM at high speed
• Electricity Use: 65.7 Watts (excludes lights)
• Airflow Efficiency: 77.01 Cubic Feet per Minute per Watt
• 52" Blade Span
• Airflow: 5481.32 CFM at high speed
• Electricity Use: 70.6 Watts (excludes lights)
• Airflow Efficiency: 77.64 Cubic Feet per Minute per Watt

Control Options:

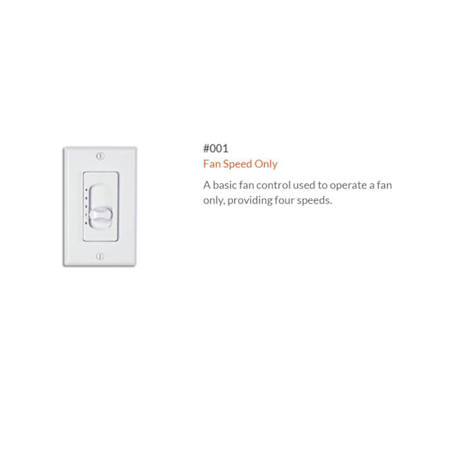

• 001 - Fan Speed Only - Basic 4 speed fan control (no light control)

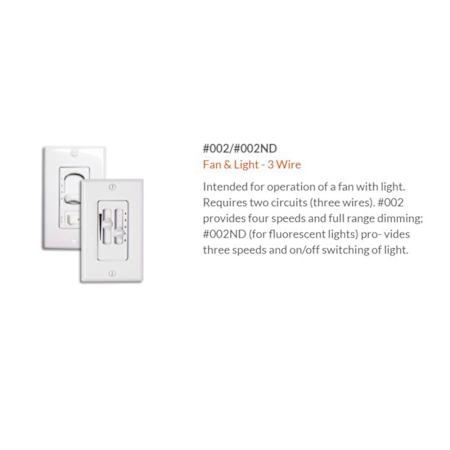

• 002 - 3 Wire Fan and Light Control -Provides four speeds and full range dimming; (non dimming CFL remotes will come supplied with 253 Light Kit optionfor fluorescent lights) provides three speeds and on/off switching of light.

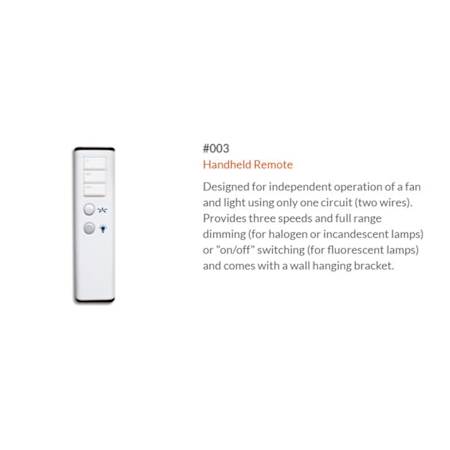

• 003 - Handheld Remote -Provides three speeds and full range dimming (for halogen or incandescent lamps) or on/off switching (for fluorescent lamps) and comes with a wall hanging bracket.

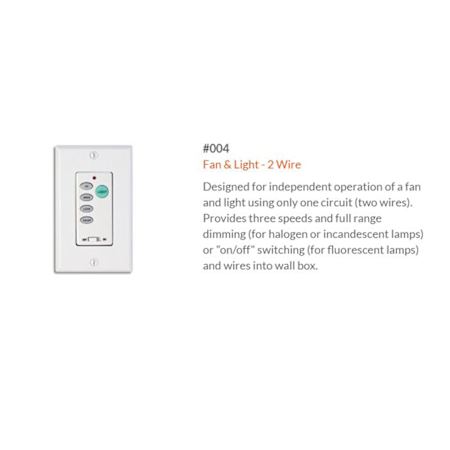

• 004 - Fan and Light Control -Provides three speeds and full range dimming (for halogen or incandescent lamps) or on/off switching (for fluorescent lamps) and wires into wall box.

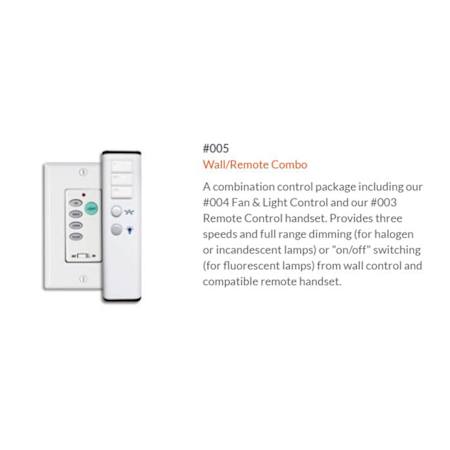

• 005 - Wall and Remote Combo -Provides three speeds and full range dimming (for halogen or incandescent lamps) or on/off switching (for fluorescent lamps) from wall control and compatible remote handset.

Motor Specifications:

• Motor Size: 153mm x 18mm
• Speeds: 3 or4 (depending on control option)
• Motor: AC Induction

Suggested Downrod Lengths:

• 9 Foot Ceiling: 6" - 12"
• 10 Foot Ceiling: 12" - 18"
• 11 Foot Ceiling: 18" - 24"
• 12 Foot Ceiling: 24" - 36"
• 13 Foot Ceiling: 36" - 48"
• 14 Foot Ceiling: 48" - 60"
• 15 Foot Ceiling: 60" - 72"
