Mitsubishi P Series 42K BTU Cooling / 48K BTU Heating 15.5 SEER2 One Zone Ceiling Suspended Mini Split Package

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

For questions or assistance, please call (855) 484-3292 to speak to one of our experts.

For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. Part of Mitsubishi's hyper-heating product line, the PCZ-HA42NHA is a packaged single zone heat pump mini split system designed to bring high-efficiency zoned temperature control to large homes and businesses in frigid climates. A low-profile ceiling suspended indoor unit, PCA-A42KA7, is paired with an outdoor condenser that uses some of the most advanced technology available to modulate temperature without the energy-wasting overshoots and short-cycling associated with simpler systems. Ceiling suspended systems are great for applications where the structure or design does not support wall mounting or ceiling cassettes. As part of Mitsubishi's commercial P-Series, the condenser is constructed with industrial-grade materials to ensure consistent performance in the harshest conditions, making this system ideal for critical applications that require constant conditioning in a sub-freezing environment.

Features:

• Precision Temperature Control Technology: The PUZ-HA42NHA outdoor condenser includes inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, output can be matched to the zone for precise temperature control and improved efficiency.

• H2i Technology: The PUZ-HA42NHA maintains heating operation with outdoor temperatures as low as -13° F. The PCZ-HA42NHA also features hot-start heat-pump technology to ensure that no cold air escapes during warm up.

• Dehumidification: When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.

• Vane Control: Optimal air flow can be achieved with the PCA-A42KA thanks to the vane control option. This function provides access to four different horizontal vane positions and a swing mode. Swing mode cycles through all positions for maximum coverage.

Product Assurance:

• Certifications: AHRI
• Performance and Efficiency:
  • SEER: 14.5
  • SEER2: 15.5
  • HSPF: 10.4
  • HSPF2: 9
  • EER: 10
• Manufacturer Warranty: 5 Year Parts

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris

Specifications:

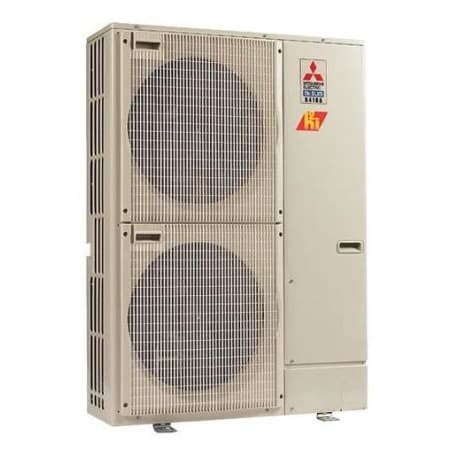

PUZ-HA42NKA1

• Cooling BTU Capacity: 42000
• Sound Level: 51 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -13 F
• Minimum Outdoor Temperature for Cooling: 23 F
• Liquid Line Connection Size: 3/8" Inch
• Gas Line Connection Size: 5/8" Inch
• Depth: 14"
• Height: 52-3/4"
• Width: 41-3/8"
• Recommended Breaker Size: 44 A
• Amperage: 37 A
• Voltage: 208, 230V

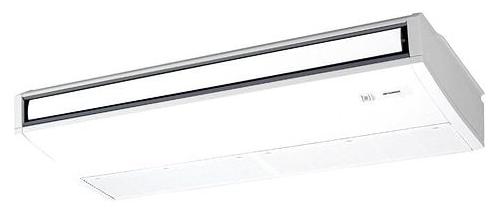

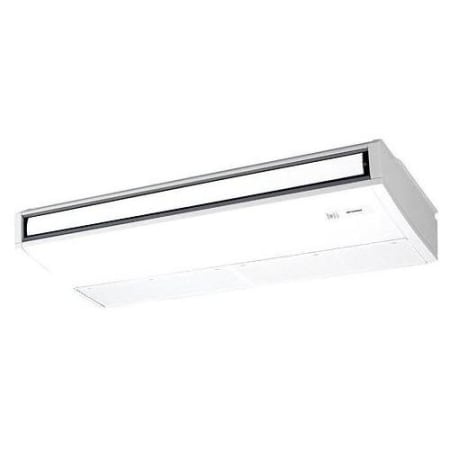

PCA-A42KA7.TH

• Zone Cooling BTU: 42000
• Liquid Line Connection Size: 3/8" Inch
• Gas Line Connection Size: 3/4" Inch
• Depth: 26-3/4"
• Height: 9-1/16"
• Width: 63"
• Recommended Breaker Size: 15 A
• Amperage: 15, 2 A
• Voltage: 208, 230V
