Mitsubishi 48K BTU Cooling / 54K BTU Heating 23 SEER2 Four Zone Floor Console Mini Split Package with (1) 9k and (3) 15k BTU Indoor Units

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

For questions or assistance, please call (855) 484-3292 to speak to one of our experts.

For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. Mitsubishi's floor mounted indoor units are a great alternative for rooms where you don't have the ceiling height or wall space to allow for a wall mounted unit. An MXZ multi-room system is an excellent choice for supplementing capacity to a current system, conditioning newly furnished spaces, or new additions and replacing a system within a home. With four included wireless remote controllers, this system is the perfect combination of convenience and comfort for any heating or cooling application.

Features:

• Precision Temperature Control Technology: The outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. These components improve temperature accuracy and system efficiency through precise adjustments of both compressor speed and refrigerant flow.

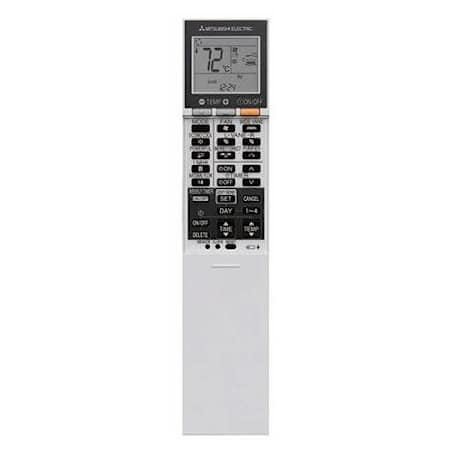

• Smart Set: Mitsubishi's Smart Set function allows you to save a cooling profile and a heating profile, each consisting of a temperature, a fan speed, and an airflow direction. These profiles can be activated easily with a press of the Smart Set button on the remote.

• Econo Cool Mode: By slowly adjusting the cooling set point and swinging the horizontal vanes, the MFZ-KJ can improve the efficiency of cooling operations without compromising the comfort provided.

• Powerful Mode: The powerful setting on the MFZ-KJ makes it easy to get your zone to the perfect temperature quickly. When it is activated, the unit temporarily increases refrigerant flow and fan speed to provide quick comfort through rapid heating or cooling.

• Multiple Vane Control Options: Auto mode selects the best vane position based on operating mode, and the swing modes cycle through all positions for maximum coverage.

• Multiple Airflow Options: When 2 FLOW is selected the unit will blow air from the top and front of the unit. When 1 FLOW is selected, air only blows from the top of the unit.

• Dehumidification: When the indoor unit is run in dry mode, it will remove unwanted moisture. This improves your comfort and reduces the chance of mold growth and other property damage in the room.

• Hot Start: Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.

• H2i Technology: H2i hyper heat performance offers 100% heating capacity at 5 degrees and 74% heating capacity at -13 degrees Fahrenheit.

• Integrated Base Pan Heater: Factory-installed base pan heater in the drain pan. This prevents condensate from freezing and damaging the unit in frigid climates.

Product Assurance:

• Certifications:
  • AHRI
  • ETL
• Performance and Efficiency:
  • SEER: 23
  • SEER2: 23
  • HSPF: 12
  • HSPF2: 11.5
  • EER: 13.1
• Manufacturer Warranty: 5 Year Parts, 90 Day Parts

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser

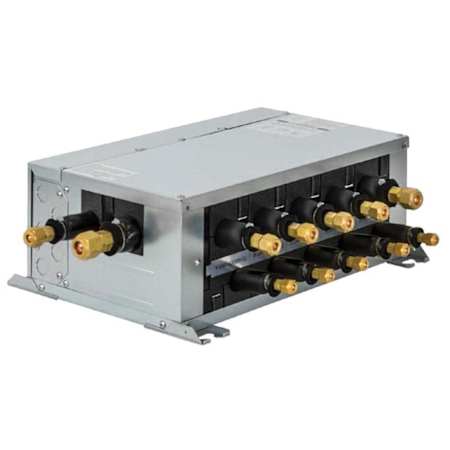

• Branch Box: The branch box connects to the condenser and allows for multiple refrigerant lines to be connected to your indoor evaporators
• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris

Specifications:

PAC-MKA52BC

• Width: 21-5/16"
• Length: 6-11/16"
• Depth: 16-3/8"
• Product Weight: 21 lbs.

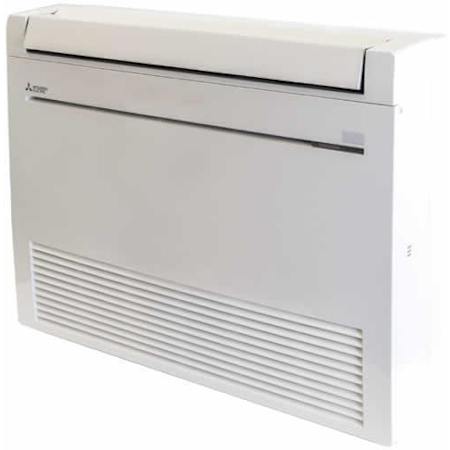

MFZ-KJ09NA-U1

• Zone Cooling BTU: 9000
• Zone Heating BTU: 11000
• Cooling Area: 350 Sq. Ft.
• Sound Level: 21 to 41 dB
• Liquid Line Connection Size: 1/4" Inch
• Gas Line Connection Size: 3/8" Inch
• Depth: 8-1/2"
• Height: 23-5/8"
• Width: 29-1/2"
• Voltage: 208, 230V

MFZ-KJ15NA-U1 (x3)

• Zone Cooling BTU: 15000
• Zone Heating BTU: 18000
• Cooling Area: 550 Sq. Ft.
• Sound Level: 28 to 49 dB
• Liquid Line Connection Size: 1/4" Inch
• Gas Line Connection Size: 1/2" Inch
• Depth: 8-1/2"
• Height: 23-5/8"
• Width: 29-1/2"
• Voltage: 208, 230V

MXZ-SM48NAMHZ

• Cooling BTU Capacity: 48000
• Heating BTU Capacity: 54000
• Zone Capacity: 8
• Sound Level: 54 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -13 F
• Minimum Outdoor Temperature for Cooling: 23 F
• Liquid Line Connection Size: 3/8" Inch
• Gas Line Connection Size: 5/8" Inch
• Depth: 13"
• Height: 52-11/16"
• Width: 41-3/8"
• Recommended Breaker Size: 45 A
• Amperage: 42 A
• Voltage: 208, 230V
