Mitsubishi 36K BTU Cooling / 42K BTU Heating 23 SEER2 Three Zone Wall Mount Mini Split Package with 6k, 12k, and 18k BTU Indoor Units

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

For questions or assistance, please call (855) 484-3292 to speak to one of our experts.

For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. This is a three zone mini split system designed to give you individual control over the temperature in multiple rooms. An efficient MXZ-SM36NAMHZ outdoor condenser, built with advanced technology, is combined with quiet, wall-mounted MSZ-GS indoor units and three wireless remote controllers for the perfect marriage of convenience and comfort. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this is a system that fits the needs of nearly any home.

Features:

• Hyper Heating: Low and negative ambient temperatures don't bother the MXZ-SM36NAMHZ. It is rated for 100% heating capacity at 5 degrees F and continues to provide heating in outdoor conditions as low as -13 degrees F.

• Advanced Filtration System: The MSZ-GS unit combines a hybrid catechin deodorizing filter with an enzyme-based filter for managing allergens. The anti-allergy filter not only captures the offending particles, it also breaks them down, cleaning the air as it is conditioned.

• Integrated Base Pan Heater: MXZ-SM outdoor condensers have a Factory-installed base pan heater in the drain pan. This prevents condensate from freezing and damaging the unit in frigid climates.

• Econo Cool Mode: By slowly adjusting the cooling set point and swinging the horizontal vanes, the MSZ-GS unit can improve the efficiency of cooling operations without compromising the comfort provided.

• hot-start: Mitsubishi's hot-start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.

• Multiple Vane Control Options: Auto mode selects the best vane position based on operating mode, and the swing modes cycle through all positions for maximum coverage. When wide mode is activated, fan speed increases beyond the current setting.

Product Assurance:

• Certifications:
  • AHRI
  • ETL
• Performance and Efficiency:
  • SEER: 23
  • SEER2: 23
  • HSPF2: 12
  • EER: 15
• Manufacturer Warranty: 5 Year Parts, 90 Day Parts

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser

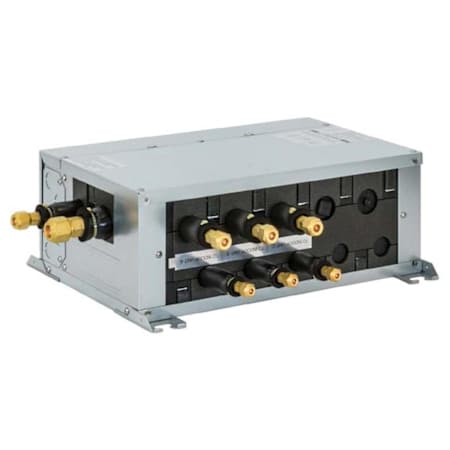

• Branch Box: The branch box connects to the condenser and allows for multiple refrigerant lines to be connected to your indoor evaporators
• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris

Recommended Components:

• MSZ-GS06NA-U1: 1/4" x 3/8" Line Set
• MSZ-GS12NA-U1: 1/4" x 3/8" Line Set
• MSZ-GS18NA-U1: 1/4" x 1/2" Line Set

Specifications:

PAC-MKA32BC

• Width: 21-5/16"
• Length: 6-11/16"
• Depth: 16-3/8"
• Product Weight: 19 lbs.

MAC-A454JP-E

• Product Weight: 0.5 lbs.

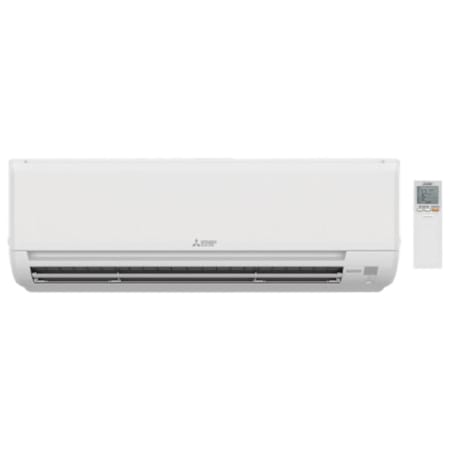

MSZ-GS06NA-U1

• Zone Cooling BTU: 6000
• Sound Level: 19 to 43 dB
• Liquid Line Connection Size: 1/4" Inch
• Gas Line Connection Size: 3/8" Inch
• Depth: 9-1/8"
• Height: 11-5/8"
• Width: 31-7/16"
• Voltage: 208, 230V

MSZ-GS12NA-U1

• Zone Cooling BTU: 12000
• Sound Level: 19 to 45 dB
• Liquid Line Connection Size: 1/4" Inch
• Gas Line Connection Size: 3/8" Inch
• Depth: 9-1/8"
• Height: 11-5/8"
• Width: 31-7/16"
• Voltage: 208, 230V

MSZ-GS18NA-U1

• Zone Cooling BTU: 18000
• Sound Level: 29 to 49 dB
• Liquid Line Connection Size: 1/4" Inch
• Gas Line Connection Size: 1/2" Inch
• Depth: 9-13/16"
• Height: 12"
• Width: 36-5/16"
• Voltage: 208, 230V

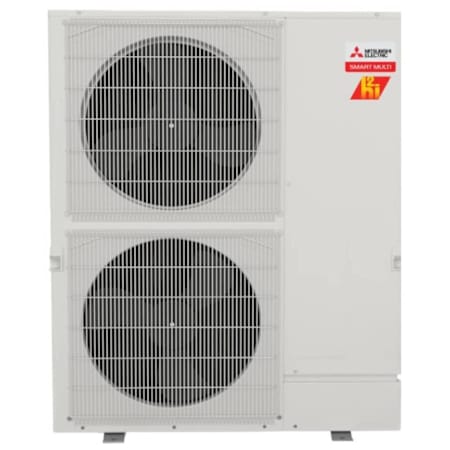

MXZ-SM36NAMHZ

• Cooling BTU Capacity: 36000
• Heating BTU Capacity: 42000
• Zone Capacity: 4
• Sound Level: 53 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -13 F
• Minimum Outdoor Temperature for Cooling: 23 F
• Liquid Line Connection Size: 3/8" Inch
• Gas Line Connection Size: 5/8" Inch
• Depth: 13"
• Height: 52-11/16"
• Width: 41-3/8"
• Recommended Breaker Size: 45 A
• Amperage: 42 A
• Voltage: 208, 230V
