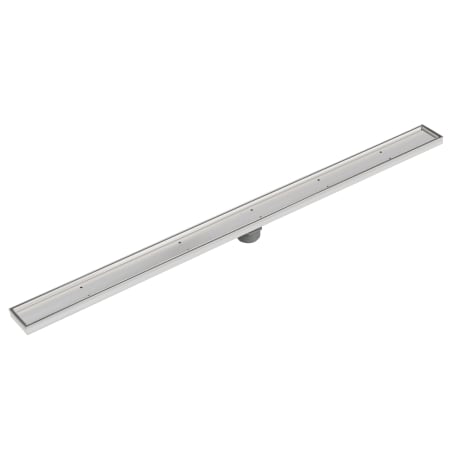

Miseno 60" Tile Insert Linear Shower Drain

MNO60TLD Features:

• Covered under Miseno's limited lifetime residential warranty with a one year limited commercial warranty
• Constructed from 18 gauge, 304 grade stainless steel which provides enhanced resistance to corrosion as well as being extremely durable and sturdy
• Tile insert design creates the illusion of water disappearing into the floor, giving your finished project a seamless look
• Tile insert tray is capable of accommodating any flooring material up to 1/2" thick
• Compatible with most standard 2" floor drains
• Included strainer protects the drain from potential blockage
• Includes lifting key to easily remove the insert for cleaning and maintenance

MNO60TLD Codes and Standards:

• cUPC/IAPMO listed
• ASME A112.18-2-2015/CSA B125.2
• ANSI approved
• Approved for commercial use

MNO60TLD Specifications:

• Overall Length: 60"
• Overall Width: 3-1/4"
• Overall Height: 2-3/4"
• Drain Connection Size: 2"
