Miseno Mia 1.8 GPM Single Hole Pull Down Kitchen Faucet

MNO003L Features:

• Single hole installation (Can be installed on 3 hole configurations with included deck plate)
• Smooth single handle operation
• 7” pull-down sprayer hose reach
• Spout swivels 360 degrees to cover the entire sink
• Faucet function and finish are covered under Miseno’s Limited Lifetime warranty

MNO003L Construction:

• Faucet body constructed from solid brass
  • The gold standard in plumbing - brass is ultra durable as it is highly corrosion resistant and handles variable temperatures better than any other metal
• Drip-free ceramic disc mixing valve cartridge
• Premium finishes
  • Reflective finishes are plated and brushed finishes use a process called Physical Vapor Deposition (PVD) - both of which are guaranteed to last a lifetime
• Integrated 20" braided supply lines
  • The braiding adds flexibility and durability, while the integration into the faucet saves valuable installation time, as well as a trip to the hardware store

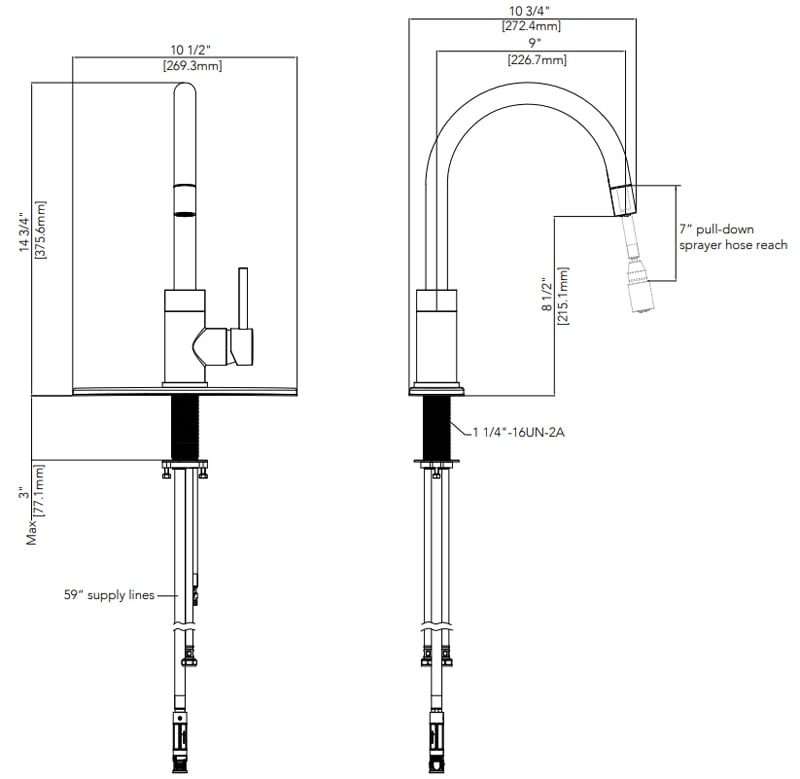

MNO003L Specifications:

• Overall Height: 14-3/4” (mounting surface to highest part of faucet)
• Spout Height: 8-1/2” (mounting surface to spout outlet)
• Spout Reach: 9” (center of faucet body to center of spout outlet)
• Handle Operation: 90-degree (45-degrees back; 45-degrees forward)
• Flow Rate (at Max PSI): 1.8 gallons-per-minute
• Faucet Holes Required: 1 (3 hole, 8" center configurations can be covered by utilizing deck plate)
• Minimum Backsplash Clearance: 3"
• Maximum Deck/Counter Thickness: 3”
• Deck Plate (Escutcheon) Width: 10-1/2”

MNO003L Codes and Standards:

• This faucet meets or exceeds the following codes/standards
  • WaterSense
  • cUPC/IAPMO listed
  • NSF 61-9
  • ASME A112.18.1/ CSA B125.1
  • ADA
  • AB 100
