Miseno Maximum Grade Designer Keyed Entry Handle Set with 1" Steel Deadbolt and Interior Lever

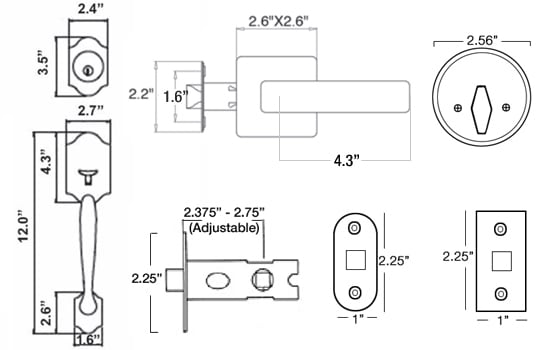

Dimension Diagram:

Entry Handleset Includes:

• 4-way latch set with adjustable backset
• 1" single-cylinder deadbolt with steel core and keyed exterior
• One exterior handle with thumb-press operation
• Interior pack - inclusive of lever handle and deadbolt thumb-turn trim
• Both square and radius corner latch plates

Product Features:

• Entire handle set features solid brass construction - providing maximum security and beauty
• The 1" deadbolt features a hardened steel core and anti-theft roller ball
• Mechanics and finish are fully covered under Miseno's limited lifetime warranty
• Premium finishes - engineered to coordinate with a variety of the industry's top plumbing and lighting fixtures
• Handleset is rated to exceed 200,000 cycles
• 4-way latches with adjustable backset dimension (2-3/8" - 2-3/4") - Fits almost every standard residential door
• Both square and radius-corner latch faceplates are included - customer preference in design
• All hardware required for mounting is included
• ANSI/BHMA A156.5-2001 Grade 3 certified
• 3 hours fire rating certified

Product Specifications:

• Door Thickness: 1-3/8" - 1-3/4" (the measurement of the physical thickness of the door)
• Backset Dimension: 2-3/8" - 2-3/4" adjustable (the measurement from the edge of the door to the center of the borehole)
• Latch Dimensions: 1" x 2-1/4"
• Strike Plate Dimensions: 1-5/8" X 2-1/4"
• Cross Bore: 2-1/8" (measurement of the hole in the face of the door that the set installs into)
• Edge Bore: 1" (the measurement of the hole the latch operates from)
