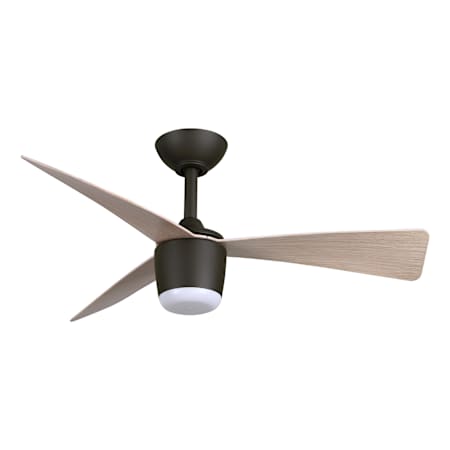

MinkaAire Elavan 36" 3 Blade Indoor LED Ceiling Fan
Model: F743L-DB/ASW|Item: bci5108987
from theElavan Collection
$499.00
Finish: Dark Bronze / Ashwood -
Special Order
Finish: Dark Bronze / Ashwood -
Special Order
Dark Bronze / Ashwood
Details
Features:
- Constructed from plastic, polycarbonate, and steel
- Comes with polycarbonate shade
- Fan is controllable by a remote (included)
- Can be installed on vaulted ceilings
- Fixture includes 6" downrod(s)
- Capable of being dimmed
- ETL for wet locations
- Energy Star certified
- Title 20 compliant
- Covered by MinkaAire's 1 year manufacturer warranty
- Professional installation recommended
- Features a 20-watt integrated LED
Dimensions:
- Height: 12-3/4"
- Width: 36"
- Product Weight: 10.54 lbs
- Wire Length: 80"
- Canopy Height: 2-1/8"
- Canopy Width: 5-7/8"
- Canopy Depth: 5-7/8"
Dimensions and Measurements
Blade Pitch | 28 Degrees |
Blade Span | 36 in. |
Canopy Depth | 5.88 in. |
Canopy Height | 2.13 in. |
Canopy Width | 5.88 in. |
CFM | 3029 |
CFM (High) | 3029 |
CFM (Low) | 608 |
Downrod Size(s) | 6 in. |
Height | 12.75 in. |
Motor Size | 123 mm |
Product Weight | 10.54 lbs. |
Shade Height | 0.88 in. |
Shade Width | 4.75 in. |
Width | 36 in. |
Wire Length | 80 in. |
Dimensions and Measurements
Blade Pitch | 28 Degrees |
Blade Span | 36 in. |
Canopy Depth | 5.88 in. |
Canopy Height | 2.13 in. |
Canopy Width | 5.88 in. |
CFM | 3029 |
CFM (High) | 3029 |
CFM (Low) | 608 |
Downrod Size(s) | 6 in. |
Height | 12.75 in. |
Motor Size | 123 mm |
Product Weight | 10.54 lbs. |
Shade Height | 0.88 in. |
Shade Width | 4.75 in. |
Width | 36 in. |
Wire Length | 80 in. |
Included Components
Blades Included | Yes |
Controller Included | Yes |
Downrod(s) Included | Yes |
Includes Receiver | Yes |
Light Kit Included | Yes |
Shade | Yes |
Included Components
Blades Included | Yes |
Controller Included | Yes |
Downrod(s) Included | Yes |
Includes Receiver | Yes |
Light Kit Included | Yes |
Shade | Yes |
Characteristics and Features
Blade Finish | Light Wood |
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 3000K |
Control Type | Remote |
Dimmable | Yes |
Fan Blade Material | ABS |
Fan Type | Hanging |
LED | Yes |
Light Kit Compatible | No |
Material | Plastic, Polycarbonate, Steel |
Motor | DC Motor |
Number of Blades | 3 |
Reversible Blades | No |
Reversible Motor | Yes |
Shade Color | White |
Shade Material | Polycarbonate |
Shade Shape | Dome |
Sloped Ceiling Compatible | Yes |
Smart Home | No |
Theme | Transitional |
Vintage Edison Bulb | No |
Characteristics and Features
Blade Finish | Light Wood |
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 3000K |
Control Type | Remote |
Dimmable | Yes |
Fan Blade Material | ABS |
Fan Type | Hanging |
LED | Yes |
Light Kit Compatible | No |
Material | Plastic, Polycarbonate, Steel |
Motor | DC Motor |
Number of Blades | 3 |
Reversible Blades | No |
Reversible Motor | Yes |
Shade Color | White |
Shade Material | Polycarbonate |
Shade Shape | Dome |
Sloped Ceiling Compatible | Yes |
Smart Home | No |
Theme | Transitional |
Vintage Edison Bulb | No |
Electrical and Operational Information
Amperage | 0.48 |
Average Hours | 30000 Hours |
Color Rendering Index (CRI) | 90 |
Lumens | 1173 |
Power Source | Hardwired |
RPM | 230 |
RPM (High) | 230 |
RPM (Low) | 48 |
Speeds | 6 |
Voltage | 120 |
Wattage | 20 |
Electrical and Operational Information
Amperage | 0.48 |
Average Hours | 30000 Hours |
Color Rendering Index (CRI) | 90 |
Lumens | 1173 |
Power Source | Hardwired |
RPM | 230 |
RPM (High) | 230 |
RPM (Low) | 48 |
Speeds | 6 |
Voltage | 120 |
Wattage | 20 |
Warranty and Product Information
Certifications | ETL |
Collection | Elavan |
Country Of Origin | Taiwan |
Energy Star | Yes |
Location Rating | Wet Location |
Manufacturer Warranty | 1 Year |
Title 20 Compliant | Yes |
Warranty and Product Information
Certifications | ETL |
Collection | Elavan |
Country Of Origin | Taiwan |
Energy Star | Yes |
Location Rating | Wet Location |
Manufacturer Warranty | 1 Year |
Title 20 Compliant | Yes |
