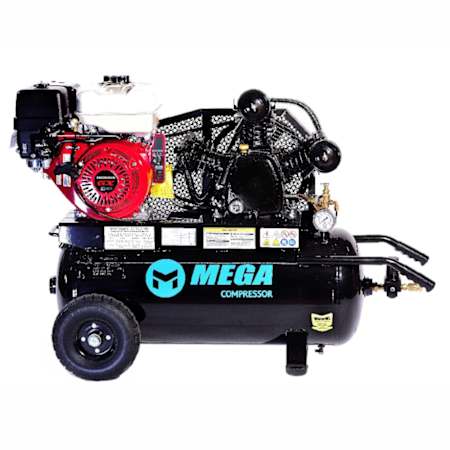

MEGA Compressor 9 HP 22 Gal 150 Max PSI Single-Stage Portable Gas Reciprocating Air Compressor with Electric Start Honda Engine
Model: MP-9022GE|Item: bci5120461
Details
Product Information:
- Reliable 9-HP Honda GX270 OHV Engine w/ Electric Start
- Low oil engine shutdown for maximum reliability
- Easy starting, high low fuel and oil consumption and reduced noise levels
- Delivers 20 CFM @ 90 PSI: Max 150 PSI
- Plenty of power to run a wide range of air tools
- Low 1100 RPM reduces wear and tear for longer lifespan
- Cast Iron Splash Lubricated High Stroke Pump
- Thermally stable cast iron cylinder body
- Aluminum head and machine cast iron valve plate
- Aluminum pump head helps dissipate heat for longer pump life
- One-Piece Cast Iron Crankcase
- "W" Design minimizes vibration and improves cooling
- Durable automotive-style ball bearing and stainless-steel reed valves
- Easy Viewing Oil Sight Glass
- Simply check compressors pump oil level
- Conveniently accessible oil fill for fast maintenance
- 22-Gallon Capacity ASME Tank
- Fully enclosed belt guard protects you and the belt
- Manual tank drain for quick tank draining to prevent rust
- Pneumatic wheels and sturdy grip handles make transporting effortlessly
- Top-Mounted Control Panel
- 3/8" quick connect outlet and easy to read pressure gauges
- Regulator allows maximum air flow for peak tool performance
- 1-Year Limited Warranty
- Protects your investment
- Shipped with 100% full synthetic air compressor oil
Specifications:
- Certifications: ASME
- Fuel Type: Gas
- Height: 44"
- Width: 48"
- Length: 28"
- Product Weight: 242 lbs
- Warranty: 1 Year Residential
Included Accessories:
- Pressure Gauge Included
- Pressure Regulator Included
Tank Specifications:
- Tank Outlet Size: 3/8"
- Tank Size: 22
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 20
- Drive Type: Belt Drive
Engine and Motor Specifications:
- 270 CC
- Honda GX
- Horsepower: 9 HP
Manufacturer Resources
Product ManualDimensions and Measurements
CFM | 20 |
Height | 44 in. |
Length | 28 in. |
Product Weight | 242 lbs. |
Width | 48 in. |
Dimensions and Measurements
CFM | 20 |
Height | 44 in. |
Length | 28 in. |
Product Weight | 242 lbs. |
Width | 48 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Engine Brand | Honda GX |
Engine Low Oil Shutdown | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum Head, Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/8" |
Tank Size | 22 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Engine Brand | Honda GX |
Engine Low Oil Shutdown | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum Head, Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/8" |
Tank Size | 22 |
Tank Type | Hot Dog |
Electrical and Operational Information
Cubic Capacity | 270 cc |
Drive Type | Belt Drive |
Fuel Type | Gas |
Grade | Contractor |
Horsepower | 9 |
Maximum Operating Pressure (PSI) | 150 |
Stages | Single-Stage |
Starting System | 12-Volt Key Start w/ Recoil |
Electrical and Operational Information
Cubic Capacity | 270 cc |
Drive Type | Belt Drive |
Fuel Type | Gas |
Grade | Contractor |
Horsepower | 9 |
Maximum Operating Pressure (PSI) | 150 |
Stages | Single-Stage |
Starting System | 12-Volt Key Start w/ Recoil |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Residential |
