Shipping to:Chico, CA

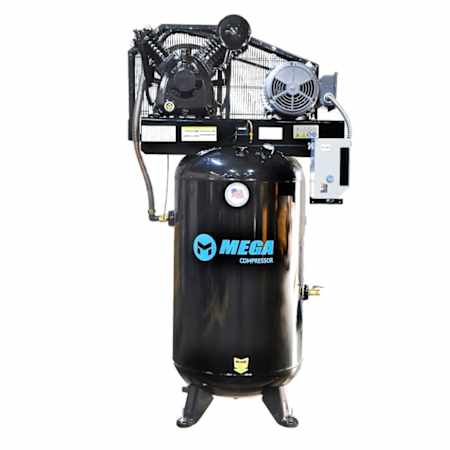

MEGA Compressor 7.5 HP 80 Gal 175 Max PSI Industrial Series Two-Stage Stationary Electric (460 Volt 3 Phase) Reciprocating Air Compressor
Model: MP-7580VM3-460|Item: bci5120396
$3,140.99
2 In Stock
Details
Product Information:
- MEGA Two-Stage Industrial Air Compressor
- Designed for the serious DIY'er, professional or contractor
- Install and operate in garages, farm shops & industrial applications
- Heavy-Duty 7.5-HP Induction Motor
- Provides maximum performance and efficiency
- Low 1755 RPM reduces wear and tear for longer life span
- Pre-Wired Magnetic Starter
- Saves time and money
- Provides thermal overload protection for the motor
- Delivers 22 CFM @ 90 PSI: Max 175 PSI
- Plenty of power to run a wide range of air tools
- Tackle rotating tires, grinding, sanding, painting, nailing & more

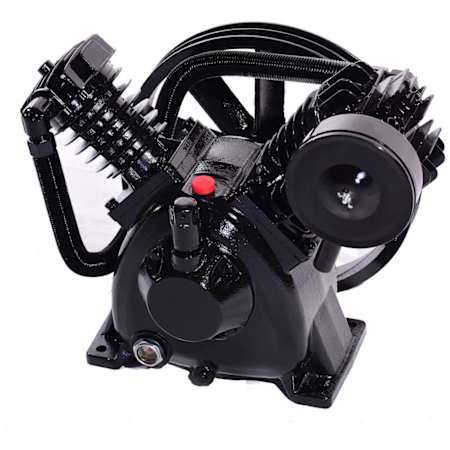

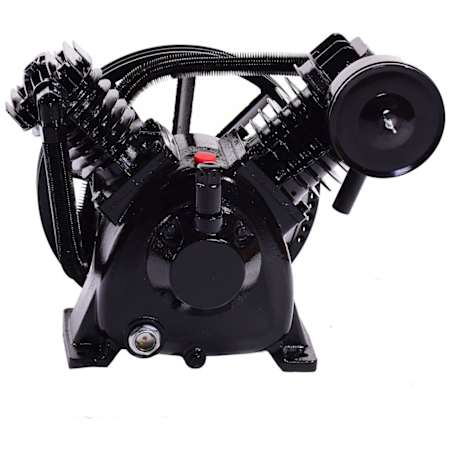

- Cast Iron Splash Lubricated Pump
- Thermally stable cast iron cylinder body
- Aluminum head and machine cast iron valve plate
- Aluminum pump head helps dissipate heat for longer pump life
- One-Piece Cast Iron Crankcase
- "V" Design minimizes vibration and improves cooling
- Durable automotive-style ball bearing and stainless steel reed valves
- 80-Gallon Vertical ASME Tank
- Fully enclosed belt guard protects you and the belt
- Easy-access manual drain simplifies routine maintenance
- Easy Viewing Oil Sight Glass On Pump
- Easily check compressors pump oil level
- Conveniently accessible oil fill for fast maintenance
- 1-year Limited Warranty
- Protects your investment
- Shipped with 100% full synthetic air compressor oil
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 84"
- Width: 44"
- Length: 39"
- Product Weight: 508 lbs
- Warranty: 1 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 80
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 22
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 7.5 HP
- Amperage: 17A
- Voltage: 460V
- Voltage: 460V
Dimensions and Measurements
CFM | 22 |
Height | 84 in. |
Length | 39 in. |
Product Weight | 508 lbs. |
Width | 44 in. |
Dimensions and Measurements
CFM | 22 |
Height | 84 in. |
Length | 39 in. |
Product Weight | 508 lbs. |
Width | 44 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum Head, Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum Head, Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 17 |
Breaker Needs | 40 Amps |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 7.5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 460 |
Electrical and Operational Information
Amperage | 17 |
Breaker Needs | 40 Amps |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 7.5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 460 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Residential |
