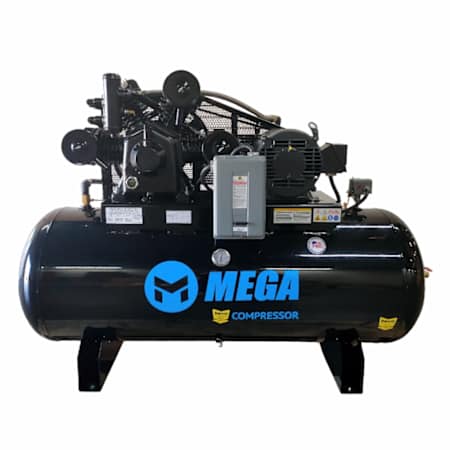

MEGA Compressor 15 HP 120 Gal 200 Max PSI Two-Stage Stationary Electric (208, 230 Volt 3 Phase) Reciprocating Air Compressor

Product Information:

• MEGA Two-Stage Industrial Air Compressor
  • Designed for the serious DIY'er, professional or contractor
  • Install and operate in garages, farm shops & industrial applications


• Heavy-Duty 15-HP Induction Motor
  • Provides maximum performance and efficiency
  • Low 1740 RPM reduces wear and tear for longer life span


• Pre-Wired Magnetic Starter
  • Saves time and money
  • Provides thermal overload protection for the motor


• Delivers 52 CFM @ 90 PSI: Max 200 PSI
  • Plenty of power to run a wide range of air tools
  • Tackle rotating tires, grinding, sanding, painting, nailing & more


• Cast Iron Splash Lubricated Pump
  • Thermally stable cast iron cylinder body
  • Aluminum head and machine cast iron valve plate
  • Aluminum pump head helps dissipate heat for longer pump life


• One-Piece Cast Iron Crankcase
  • "W" Design minimizes vibration and provides superior cooling
  • Durable automotive-style ball bearing and stainless steel reed valves


• Built-In Aftercooler: Lowers compressed air temperature and reduces condensation


• 120-Gallon Horizontal ASME Tank
  • Fully enclosed belt guard protects you and the belt
  • Easy-access manual drain simplifies routine maintenance


• Easy Viewing Oil Sight Glass On Pump
  • Easily check compressors pump oil level
  • Conveniently accessible oil fill for fast maintenance


• 1-year Limited Warranty
  • Protects your investment
  • Shipped with 100% full synthetic air compressor oil



Specifications:

• Certifications: ASME
• Fuel Type: Electric
• Height: 60"
• Width: 73"
• Length: 40"
• Product Weight: 980 lbs
• Warranty: 1 Year Residential

Included Accessories:

• Pressure Gauge Included

Tank Specifications:

• Tank Outlet Size: 3/4"
• Tank Size: 120

Pump Specifications:

• After Cooler Included
• Oil Sight Glass Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 52
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 15 HP
• Amperage: 35A
• Voltage: 208, 230V
• Voltage: 208, 230V
