The Maytag MMV1174FB has been discontinued
** See similar or replacement items below **
Item # bci3342779

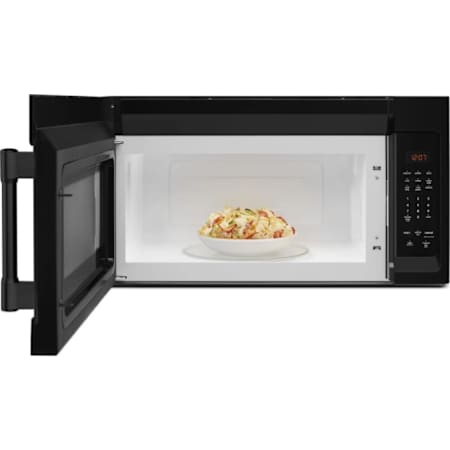

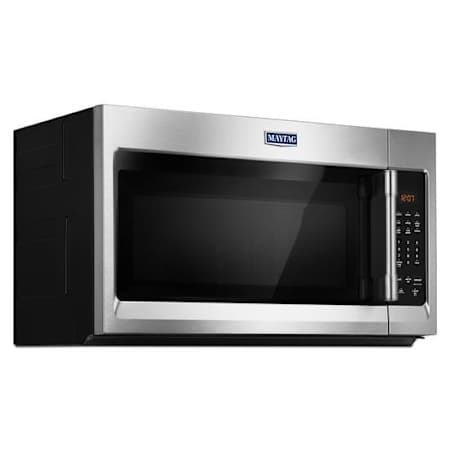

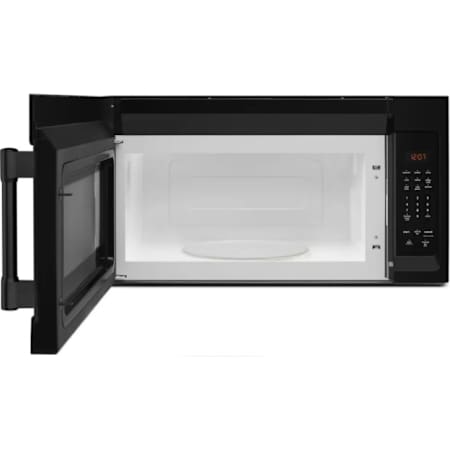

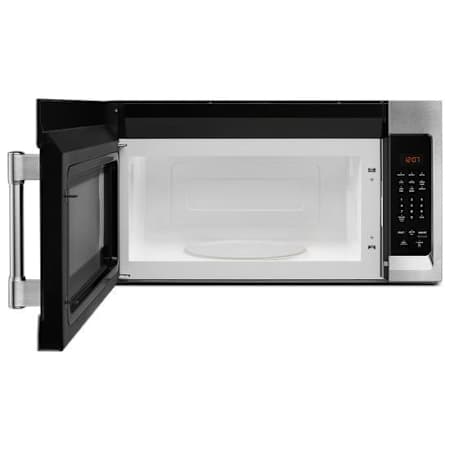

Maytag 30 Inch Wide 1.7 Cu. Ft. 1000 Watt Over the Range Microwave with Charcoal Odor Filter
Model: MMV1174FB|Item: bci3342779
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Features:
- With a 1.7 cu. ft. total capacity, this microwave has plenty of space for even larger items
- Features a 12" glass turntable to help cook food evenly

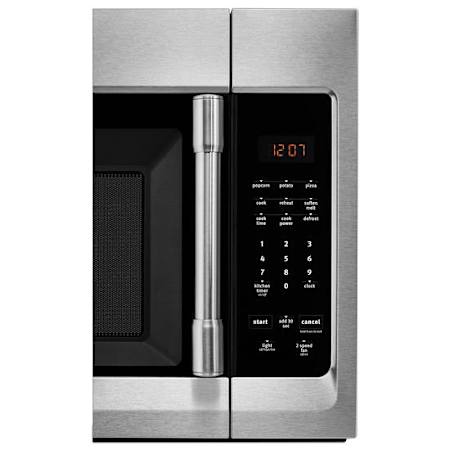

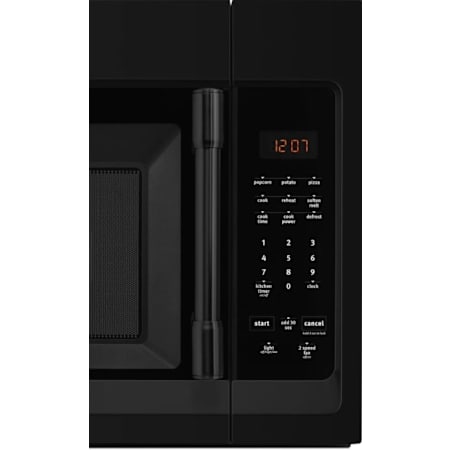

- Touch controls and a digital display offer easy access to cooking modes and power level settings
- Includes a manufacturer warranty covering 1 year of labor and 10 years of parts
Product Technologies:
- Charcoal Odor Filter: Included charcoal odor filter helps prevent cooking smells from overwhelming your meals by scrubbing the airflow of odors and steam.
Specifications:
- Total Capacity: 1.7 cu. ft.
- Turntable Type: Glass
- Turntable Diameter: 12
- Bulb Type: Incandescent
- Warm Function: Yes
- Display Type: Digital
- Fuel Type: Electric
- Depth: 16-3/4"
- Height: 17-1/8"
- Width: 29-7/8"
- Amperage: 15
- Voltage: 120
- Wattage: 1000W
Manufacturer Resources
Installation ManualManufacturer WarrantyUser GuideDimension GuideInstallation InstructionsUser InstructionsDimensions and Measurements
CFM | 300 |
Cutout Depth | 12 in. |
Cutout Height | 30 in. |
Cutout Width | 30 in. |
Depth | 16.75 in. |
Duct Size | 6" Round |
Height | 17.125 in. |
Height Above Cooktop (Max) | 30 in. |
Nominal Width | 30 in. |
Product Weight | 63 lbs. |
Total Capacity | 1.7 cu. ft. |
Turntable Diameter | 12 in. |
Width | 29.875 in. |
Dimensions and Measurements
CFM | 300 |
Cutout Depth | 12 in. |
Cutout Height | 30 in. |
Cutout Width | 30 in. |
Depth | 16.75 in. |
Duct Size | 6" Round |
Height | 17.125 in. |
Height Above Cooktop (Max) | 30 in. |
Nominal Width | 30 in. |
Product Weight | 63 lbs. |
Total Capacity | 1.7 cu. ft. |
Turntable Diameter | 12 in. |
Width | 29.875 in. |
Included Components
Available Without Blower | No |
Baking Element | No |
Bulb Included | Yes |
Clock | Yes |
Convertible to Ductless / Recirculating | Yes |
Includes Timer | Yes |
Light Included | Yes |
Included Components
Available Without Blower | No |
Baking Element | No |
Bulb Included | Yes |
Clock | Yes |
Convertible to Ductless / Recirculating | Yes |
Includes Timer | Yes |
Light Included | Yes |
Characteristics and Features
Blower Type | Built-In |
Bulb Type | Incandescent |
Control Type | Touch |
Convection | No |
Defrost Type | Automatic |
Display Type | Digital |
Door Features | Viewing Window |
Duct Discharge | Vertical |
End of Cycle Indicator | Yes |
Filter Type | Carbon Filters |
Front Loading | Yes |
Handle Material | Stainless Steel |
Heat Sensing | No |
Installation Type | Built-In |
Night Light | Yes |
Number of Racks | 0 |
Panel Ready | No |
Sensor Cooking | No |
Smart Home | No |
Theme | Modern, Contemporary |
Turntable | Yes |
Turntable Type | Glass |
Warm Function | Yes |
Characteristics and Features
Blower Type | Built-In |
Bulb Type | Incandescent |
Control Type | Touch |
Convection | No |
Defrost Type | Automatic |
Display Type | Digital |
Door Features | Viewing Window |
Duct Discharge | Vertical |
End of Cycle Indicator | Yes |
Filter Type | Carbon Filters |
Front Loading | Yes |
Handle Material | Stainless Steel |
Heat Sensing | No |
Installation Type | Built-In |
Night Light | Yes |
Number of Racks | 0 |
Panel Ready | No |
Sensor Cooking | No |
Smart Home | No |
Theme | Modern, Contemporary |
Turntable | Yes |
Turntable Type | Glass |
Warm Function | Yes |
Electrical and Operational Information
Amperage | 15 |
Auto Shut Off | Yes |
Fan Speeds | 2 |
Frequency | 60 Hertz |
Fuel Type | Electric |
Temperature Settings | 10 |
Voltage | 120 |
Wattage | 1000 |
Electrical and Operational Information
Amperage | 15 |
Auto Shut Off | Yes |
Fan Speeds | 2 |
Frequency | 60 Hertz |
Fuel Type | Electric |
Temperature Settings | 10 |
Voltage | 120 |
Wattage | 1000 |
Warranty and Product Information
ADA | No |
Application | Microwave |
Approved for Commercial Use | No |
Certifications | UL |
Energy Star | No |
Manufacturer Warranty | 1 Year Labor, 10 Year Limited Parts |
Outdoor Approved | No |
Warranty and Product Information
ADA | No |
Application | Microwave |
Approved for Commercial Use | No |
Certifications | UL |
Energy Star | No |
Manufacturer Warranty | 1 Year Labor, 10 Year Limited Parts |
Outdoor Approved | No |
