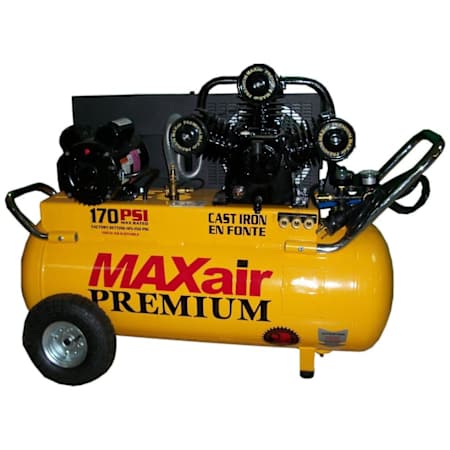

MAXair Premium 5 HP 25 Gal 170 Max PSI Single-Stage Portable Electric (208, 230 Volt) Reciprocating Air Compressor
Model: P5125H1-MAP|Item: bci5120809
$1,852.93
20 In Stock
Details
Product Information:
- Rugged 5-HP Running HP Electric Air Compressor: Heavy duty design elements for top performance
- Cast Iron Pump And Premium Air Filters
- Long lasting and easy to maintain
- "V" Design minimizes vibration, improves cooling & extends compressor life
- Individual & Removable Cylinders: For smoother and cooler operation
- 25 Gallon Air Tank With Liquid Filled Pressure Gauge: Rated to 170 PSI; 18.5 CFM @ 100 PSI runs powerful tools
- Sturdy Pneumatic Tires: Easy handling & maneuverability
- Efficient Heat Removal From Pulley-Fan: For cooler running and longer life
- Sturdy Metal Belt Guard: Protects you and the belt during operation & transport
- Outlet Valve & Regulator Included: Easy view oil sight glass makes maintenance simple
- Generous 2 Year Factory Warranty: Protects your investment
Specifications:
- Certifications: CSA
- Fuel Type: Electric
- Height: 33"
- Width: 18"
- Length: 44"
- Product Weight: 250 lbs
- Warranty: 2 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1/4"
- Tank Size: 25
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 19
Engine and Motor Specifications:
- Horsepower: 5 HP
- Voltage: 208, 230V
- Voltage: 208, 230V
Dimensions and Measurements
CFM | 18.5 |
Height | 33 in. |
Length | 44 in. |
Product Weight | 250 lbs. |
Width | 18 in. |
Dimensions and Measurements
CFM | 18.5 |
Height | 33 in. |
Length | 44 in. |
Product Weight | 250 lbs. |
Width | 18 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/4" |
Tank Size | 25 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/4" |
Tank Size | 25 |
Tank Type | Hot Dog |
Electrical and Operational Information
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 170 |
Stages | Single-Stage |
Voltage | 208, 230 |
Electrical and Operational Information
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 170 |
Stages | Single-Stage |
Voltage | 208, 230 |
Warranty and Product Information
Certifications | CSA |
Manufacturer Warranty | 2 Year Residential |
Warranty and Product Information
Certifications | CSA |
Manufacturer Warranty | 2 Year Residential |
