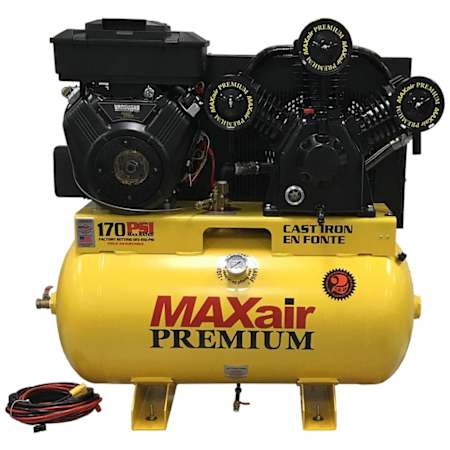

MAXair Premium 18 HP 55 Gal 170 Max PSI Single-Stage Truck Mount Gas Reciprocating Air Compressor
Model: 18G55TRKE-H-MAP|Item: bci5120294
Details
Product Information:
- Single Stage Commercial Pump Series Truck Mount Compressor
- Industry leading CFM production
- Great for mobile services, spray foaming, and construction jobs
- Innovative high pressure pump technology produces 170 PSI
- 18-HP Briggs & Stratton OHV Vanguard Electric Start Engine
- V-Twin commercial grade engine starts easily, runs quietly
- Sturdy fully enclosed metal belt guard protects the belt & the user
- Provided enough power for any job application
- Rugged Cast Iron "V" Style 3 Cylinder Pump
- V-style minimizes vibration, improves cooling for longer service
- Efficient heat removal from flywheel for cooler running & longer life
- Removable cylinders for smooth operation & easy maintenance
- High efficiency reed valves for maximum performance
- Premium "Auto Drop" Air Filters: Automotive style filter elements; no hassle replacement
- 55 Gallon ASME Certified Air Tank
- Heavy duty 3/4" ball valve included
- Government registered tank; rated to 200 PSI
- Engine Idle Control
- Reduces operating cost & unnecessary wear
- Low oil shut down for maximum protection
- Pro-Style Gauges
- Liquid filled pressure gauge is easy to read
- Easy-view oil sight gauge for optimum maintenance
- Convenient Drains
- Extended oil drain allows for easy access
- Moisture drain on front of tank eliminates scraped knuckles
- Uses 12 Volt, Motorcycle-Style Starter Battery
- Includes 33' quick connect battery cable
- Battery not included; must be purchased separately
- Generous 2-Year Commercial Manufacturer Warranty
Specifications:
- Certifications: ASME
- Fuel Type: Gas
- Height: 46-1/2"
- Width: 20"
- Length: 48"
- Product Weight: 490 lbs
- Warranty: 2 Year Commercial and 2 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 55
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 55
- Drive Type: Direct Drive
Engine and Motor Specifications:
- Auto Idle Mode Included
- Briggs and Stratton
- Horsepower: 18 HP
Dimensions and Measurements
CFM | 55 |
Height | 46.5 in. |
Length | 48 in. |
Product Weight | 490 lbs. |
Width | 20 in. |
Dimensions and Measurements
CFM | 55 |
Height | 46.5 in. |
Length | 48 in. |
Product Weight | 490 lbs. |
Width | 20 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
Auto Idle Mode | Yes |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Engine Brand | Briggs and Stratton |
Engine Low Oil Shutdown | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Truck Mount |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 55 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
Auto Idle Mode | Yes |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Engine Brand | Briggs and Stratton |
Engine Low Oil Shutdown | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Truck Mount |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 55 |
Tank Type | Hot Dog |
Electrical and Operational Information
Drive Type | Direct Drive |
Fuel Type | Gas |
Grade | Contractor |
Horsepower | 18 |
Maximum Operating Pressure (PSI) | 170 |
Stages | Single-Stage |
Starting System | 12-Volt Key Start |
Electrical and Operational Information
Drive Type | Direct Drive |
Fuel Type | Gas |
Grade | Contractor |
Horsepower | 18 |
Maximum Operating Pressure (PSI) | 170 |
Stages | Single-Stage |
Starting System | 12-Volt Key Start |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential |
