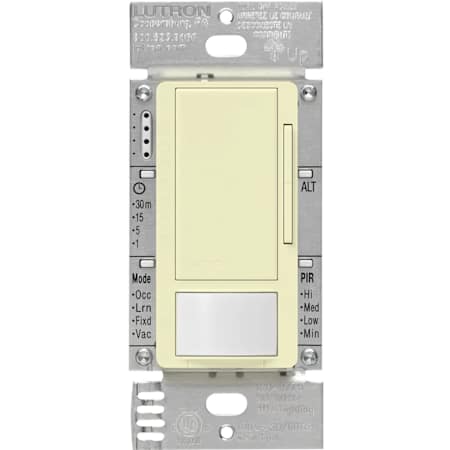

Lutron Maestro 8 Amp 120-277 Volt Single Pole/Multi-Location 0-10V Motion Sensor/Dimmer Switch

The Lutron Maestro 0-10V Motion Sensor/Dimmer Switch works just like a Lutron Maestro dimmer with the addition of Lutron’s advanced motion sensing technology to automatically and gradually turn the lights on and off. Use the raise/lower buttons to adjust the light level for any activity or set the preset level to ensure lights always turn on to your desired light level automatically. The passive infrared (PIR) sensor, covered by a tamper resistant lens, detects heat from occupants moving and has a 180-degree field of view (900 sq ft major motion & 400 sq ft minor motion coverage). Equipped with smart ambient light detection (ALD), you can customize your sensing dimmer to detect daylight.

Features:

• Rated for all drivers that provide a source current up to 8A switching LED driver/4.4A Fan (1/6 HP) with a 50mA max sink current; Neutral Optional
• Screw Terminal and Wire-Lead Installation
• Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
• 3 way, multi-location, single pole switch
• Motion Sensing, Push Button, Rocker control
• Covered by Lutron's 5 year limited manufacturer warranty

Dimensions:

• Width: 2-15/16"
• Depth: 1-9/16"

Electrical Specifications:

• Load Type: Fluorescent, LED
• Voltage: 120
