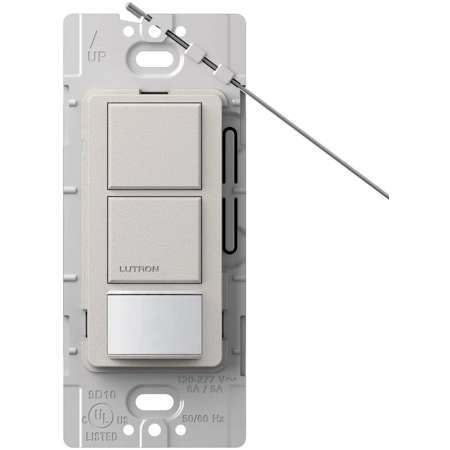

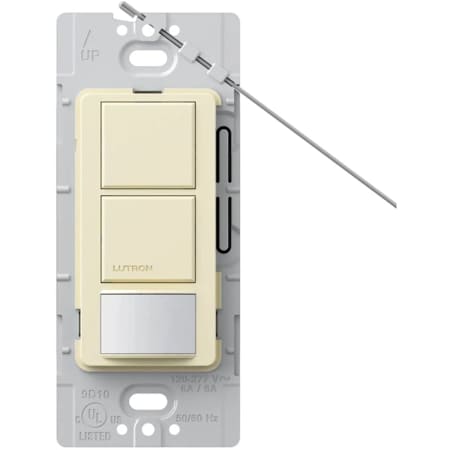

Lutron Maestro 6 Amp 120 Volt Single Pole Dual Circuit Motion Sensing Switch

The Lutron Maestro Dual Circuit Motion Sensor Switch combines two switches with an in-wall passive-infrared (PIR) occupancy/partial-on sensor for bi-level control of two circuits to meet energy codes (e.g., ASHRAE). This Dual Circuit motion sensor controls 2 individual single pole circuits each rated up to 6A of lighting or 4.4A (1/6HP) fan motors. The passive infrared (PIR) sensor, covered by a tamper resistant lens, detects heat from occupants moving and has a 180-degree field of view. Equipped with smart ambient light detection (ALD), you can customize your sensor to detect daylight, so lights don't turn on when enough natural light is present in the room.

Features:

• Controls (2) individual circuits, each rated up to 6A lighting, 4.4A (1/6HP) fans motors, or 4.4A combined fan/light
• Ground or Neutral required; 120-277V
• (2) Single Pole circuits; Wire-lead installation
• Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
• Single pole switch
• Motion Sensing, Push Button control
• Covered by Lutron's 5 year limited manufacturer warranty

Dimensions:

• Width: 2-1/4"
• Depth: 1-9/16"

Electrical Specifications:

• Load Type: Universal
• Voltage: 120
