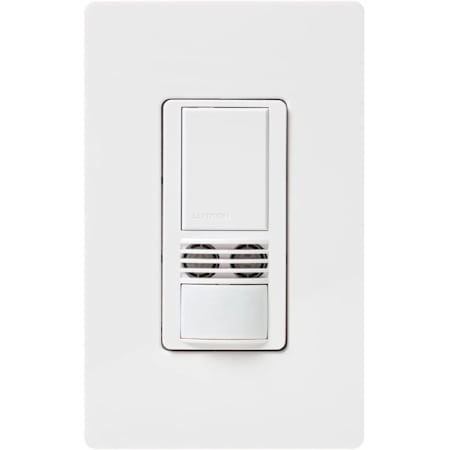

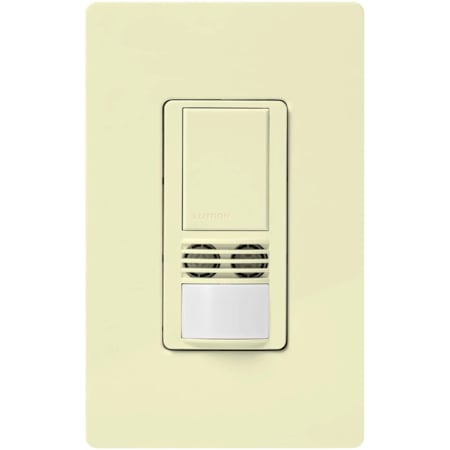

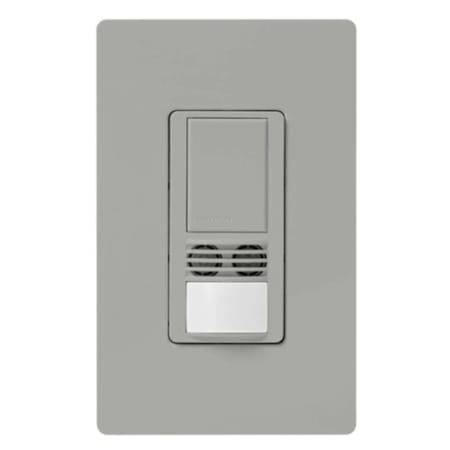

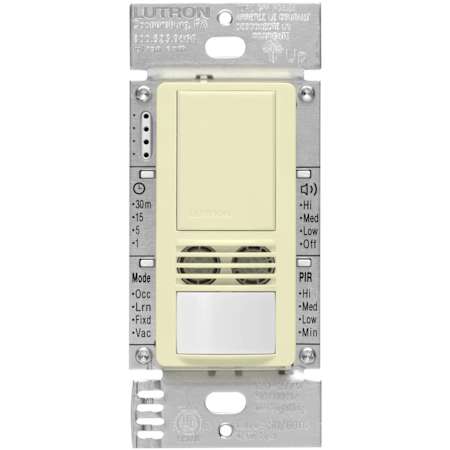

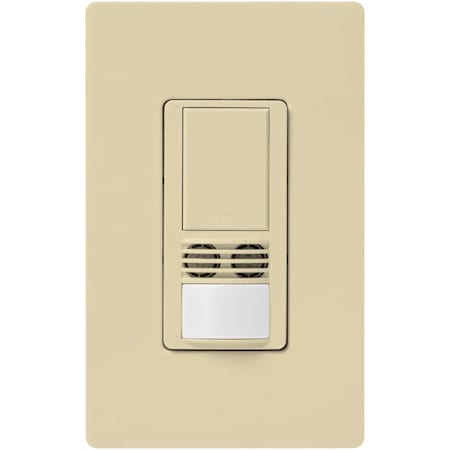

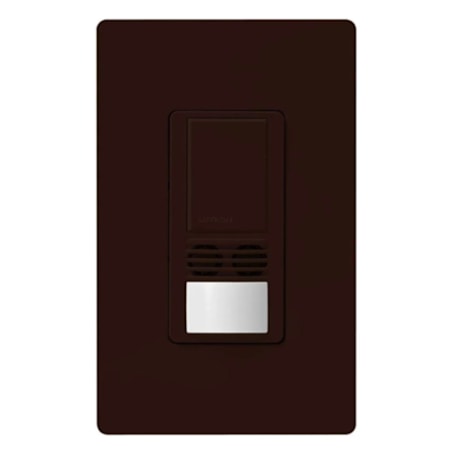

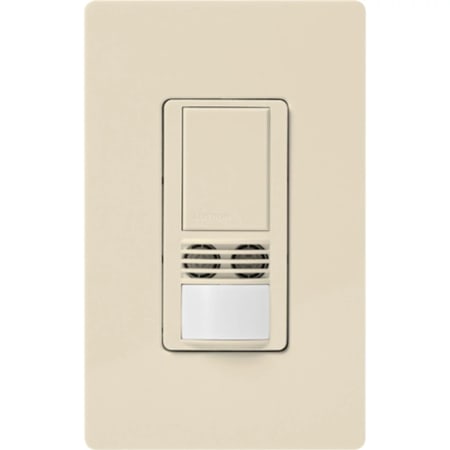

Lutron Maestro Dual-Tech Motion Sensor Switch, 6A, 120-277V, Single Pole/3-Way, Neutral Required

The Lutron Maestro Dual Technology Motion Sensor Switch uses both ultrasonic waves and passive infrared (PIR) technology to ensure reliable automatic sensing. This sensor switch is single pole or 3-way compatible and is rated to control up to 6A of lighting or 4.4A (1/6HP) fan motors. The sensor has a 180-degree field of view (900 sq ft major motion & 400 sq ft minor motion coverage) and is covered with a tamper resistant lens. It can be used to meet many of the Title 20/24, ASHRAE 90.1, and IECC code requirements such as “automatic shutoff”. This Lutron Maestro Dual-Tech Motion Sensor features Dual Sensing Technology (PIR and ultrasonic) which detects very fine motion, such as typing at a desk or reading, ensuring lights do not turn off inadvertently. Lutron Maestro Sensors have an adjustable timeout (1, 5, 15 or 30 minutes), to control how long the lights stay on after leaving the room. Lutron’s, patent pending, adaptive zero-cross switching algorithm extends and maximizes the relay’s life by switching at the point of minimum energy on the AC power curve. It’s also equipped with smart ambient light detection (ALD), you to customize your sensor to detect daylight, so lights don't turn on when there is enough natural light in your room. Easy to read programming buttons are directly on the sensor switch. Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Features:

• Includes (1) Lutron Maestro Dual-Tech Motion 6A Sensor Switch
• Rated to work with up to 6A lighting, 4.4A (1/6HP) fans motors, or 4.4A combined fan/light
• Neutral required; 120-277V
• Compatible with Maestro companion switch (MA-AS/MSC-AS) or existing 3-way switch; MA-AS/MSC-AS required for 4-way/multi-locations
• Lutron Dual Sensing Technology: Ultrasonic and PIR (Passive-Infrared) for major, minor, fine and very fine motion detection
• 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); tamper resistant lens
