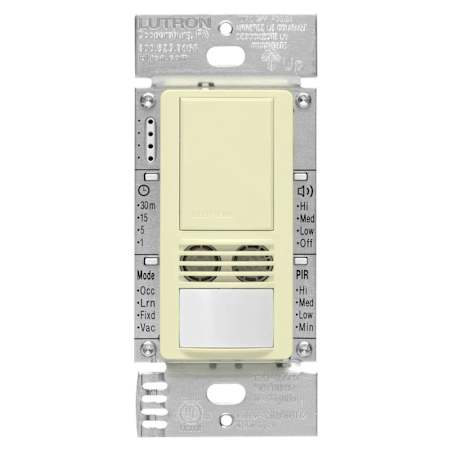

Lutron Maestro 120-277 Volt 6 Ampere Single Pole Dual-Tech Motion Sensor Switch

The Lutron Maestro Dual Technology Motion Sensor Switch uses both ultrasonic waves and passive infrared (PIR) technology to ensure reliable automatic sensing for a single circuit. This sensor switch is single pole only and rated to control up to 6A of lighting or 4.4A (1/6HP) fan motors. The sensor has a 180-degree field of view (900 sq ft major motion & 400 sq ft minor motion coverage) and is covered with a tamper resistant lens. It can be used to meet many of the Title 20/24, ASHRAE 90.1, and IECC code requirements. This sensor is built with Lutron’s Dual Sensing Technology (PIR and ultrasonic) to detect very fine motion, ensuring lights do not turn off inadvertently.

Features:

• Single Pole Only; Rated to work with a single circuit up to 6A lighting, 4.4A (1/6HP) fans motors, or 4.4A combined fan/light
• Ground or Neutral required; 120-277V
• 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); tamper resistant lens
• Lutron Dual Sensing Technology: Ultrasonic and PIR (Passive-Infrared) for major, minor, fine, and very fine motion detection
• Single pole switch
• Motion Sensing, Push Button control
• Covered by Lutron's 5 year limited manufacturer warranty

Dimensions:

• Width: 2-1/4"
• Depth: 1-9/16"

Electrical Specifications:

• Load Type: CFL, Electronic Low-Voltage, Fluorescent, Halogen, Incandescent, LED, Magnetic Low-Voltage
• Voltage: 120
