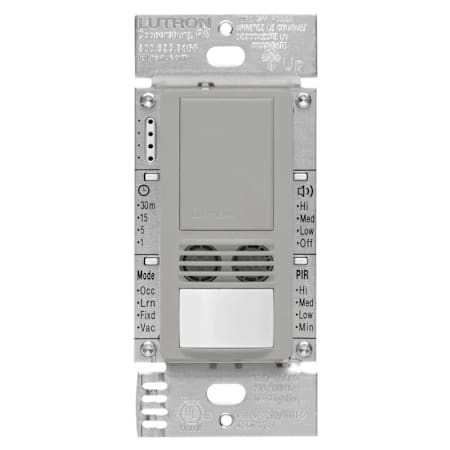

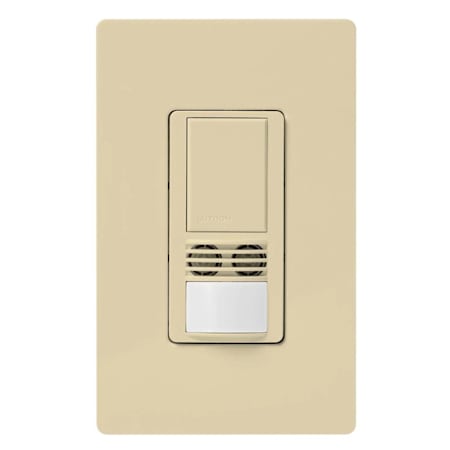

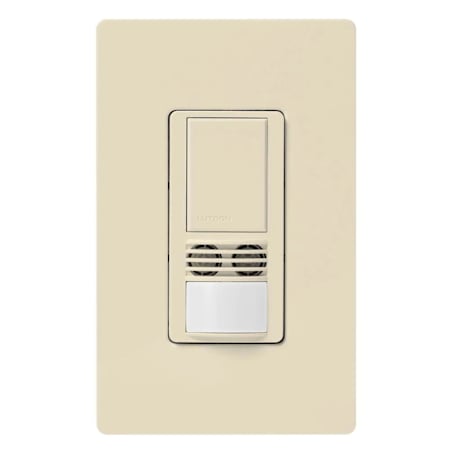

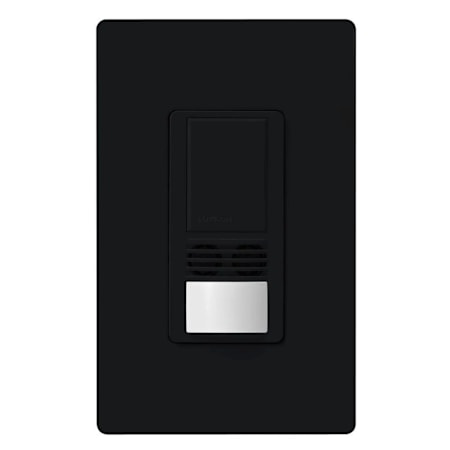

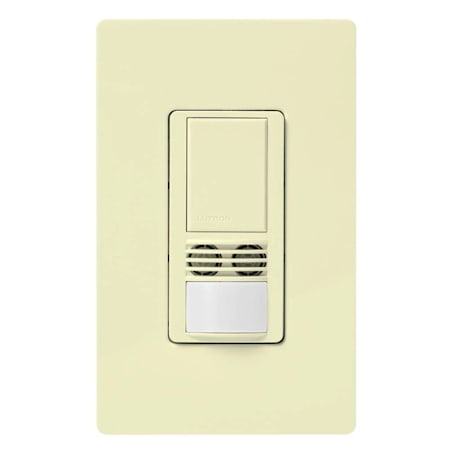

Lutron Maestro 120-277 Volt 6 Ampere Single Pole Dual-Tech Vacancy Only Motion Sensor Switch

The Lutron Maestro Dual Technology Motion Sensor Switch uses both ultrasonic waves and passive infrared (PIR) technology to ensure reliable automatic sensing for a single circuit. This vacancy sensor switch is single pole only and rated to control up to 6A of lighting or 4.4A (1/6HP) fan motors. The sensor has a 180-degree field of view (900 sq ft major motion & 400 sq ft minor motion coverage) and is covered with a tamper resistant lens. It can be used to meet many of the Title 20/24, ASHRAE 90.1, and IECC code requirements. Press the tap switch to manually turn the light ON and let dual-technology sensor will turn the lights OFF automatically when the room is vacant.

Features:

• Single Pole Only; Rated to work with a single circuit up to 6A lighting, 4.4A (1/6HP) fans motors, or 4.4A combined fan/light
• Ground or Neutral required; 120-277V
• 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); tamper resistant lens
• Lutron Dual Sensing Technology: Ultrasonic and PIR (Passive-Infrared) for major, minor, fine, and very fine motion detection
• Single pole switch

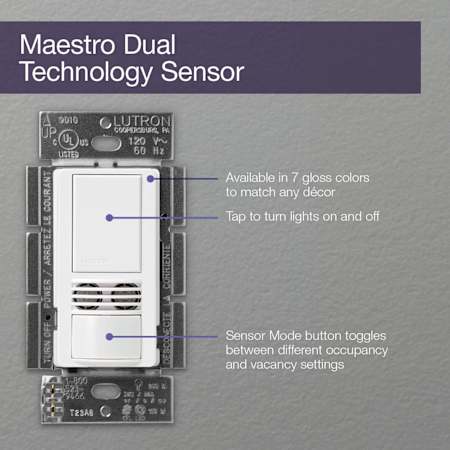

• Motion Sensing, Push Button control
• Covered by Lutron's 5 year limited manufacturer warranty

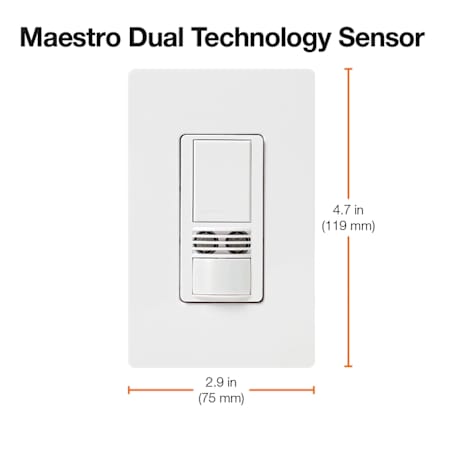

Dimensions:

• Width: 2-1/4"
• Depth: 1-9/16"

Electrical Specifications:

• Load Type: CFL, Electronic Low-Voltage, Fluorescent, Halogen, Incandescent, LED, Magnetic Low-Voltage
• Voltage: 120
