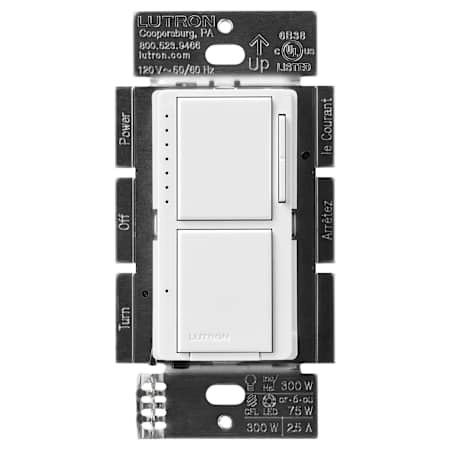

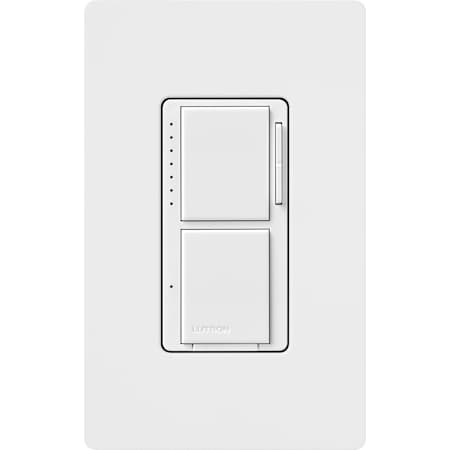

Lutron Maestro 75 Watt Single Pole LED+ Dual Dimmer and Switch with Clamshell Packaging

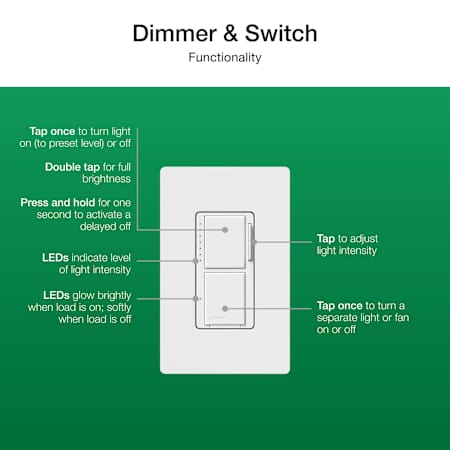

The Maestro LED+ dual dimmer and switch is a 2-in-1 control that incorporates an LED+ dimmer switch at the top and an on/off switch at the bottom. The LED+ dimmer switch has an easy low-end trim adjustment for improved bulb performance and smooth, continual dimming. This dual stacked control is also equipped with myLevel Personalization, a simple button programming mode, which allows users to set their preferred brightness, fade on/off times, or disable the indicator lights. The dimmer’s seven green indicator lights brighten when the light is on, and correlate to the light level determined by the raise/lower buttons.

Features:

• Dimming (top) load works with 75W LED bulbs or 300W incandescent/halogen bulbs
• Switch (bottom) load works with all lighting or up to 2.5A fans, including DC and high efficiency fans
• Single pole; No neutral wire required
• 1 line (hot) wire and 2 separate load wires required
• Push Button, Rocker control
• Covered by Lutron's 5 year limited manufacturer warranty

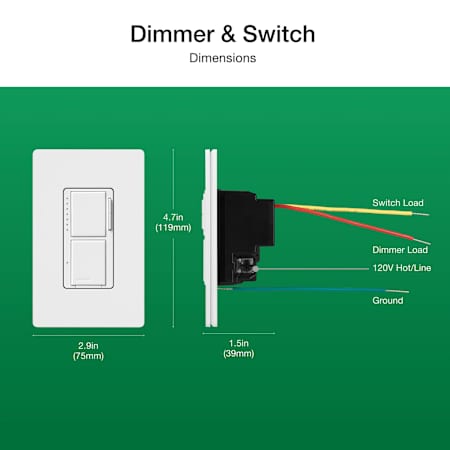

Dimensions:

• Width: 2-5/16"
• Depth: 2-5/16"

Electrical Specifications:

• Load Type: CFL, Halogen, Incandescent, LED, Universal
• Wattage: 75 watts
• Voltage: 120
