Lockey Right Handed Electronic Keypad Cabinet Lock with ADA Handle from the EC Series

Features:

• Intended for use with lockers, cabinets, and cupboards
• Programmable 4 digit user code, 8 digit master code, and 6 digit sub-master/technician code
• Operates for up to 80,000 cycles on a pair of AA batteries (batteries included)
• LED light provides warning when batteries are low
• Complies with standards of the Americans with Disabilities Act (ADA)
• Includes a Schlage C keyway, select keying options above
• Can only be keyed alike to other Lockey locks ordered at the same time
• Includes programmable auto unlock option
• Covered under a 3 Year Limited Warranty

Product Technologies:

• Public or Private Mode: Public mode allows each user to set a unique code that expires after each use. Alternately, private mode retains the same code over time until manually reprogrammed.

Specifications:

• Height: 7-1/4" (185.5 mm)
• Width: 1-1/2" (37 mm)
• Projection: 1-1/4" (28.7 mm)
• Handing: Right
• Direction: Horizontal
• Keyway: Schlage C

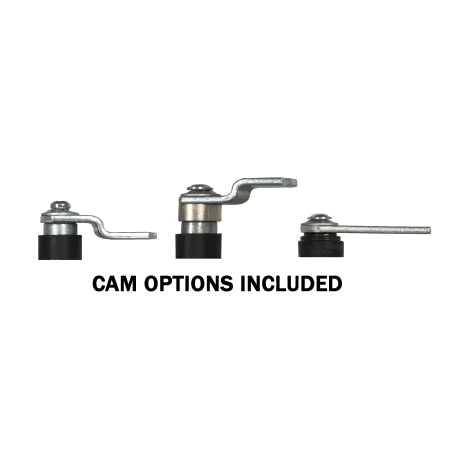

• Cam Capability: 1/4" to 1-1/2"
• Material: Zinc

• EC782L: Left Handed Keypad with ADA Handle
• EC782R (This Model): Right Handed Keypad with ADA Handle
• EC782V: Vertical Keypad with ADA Handle
• EC782VSLAM: Vertical Keypad with SLAM and ADA Handle
