Lockey Vertical Electronic Keypad Cabinet Lock with SLAM Latch from the EC Series

Features:

• Intended for use with lockers, cabinets, and cupboards
• Programmable 4 digit user code, 8 digit master code, and 6 digit sub-master/technician code
• Operates for up to 80,000 cycles on a pair of AA batteries (batteries included)
• LED light provides warning when batteries are low
• Includes a Schlage C keyway, select keying options above
• Can only be keyed alike to other Lockey locks ordered at the same time
• Includes programmable auto unlock option
• Covered under a 3 Year Limited Warranty

Product Technologies:

• Public or Private Mode: Public mode allows each user to set a unique code that expires after each use. Alternately, private mode retains the same code over time until manually reprogrammed.

• SLAM Latch: Auto lock feature engages on its own after the cabinet closes. No need to manually engage the lock after each use.

Specifications:

• Height: 5-3/8" (136 mm)
• Width: 1-1/2" (37 mm)
• Projection: 1" (27 mm)
• Direction: Vertical
• Keyway: Schlage C

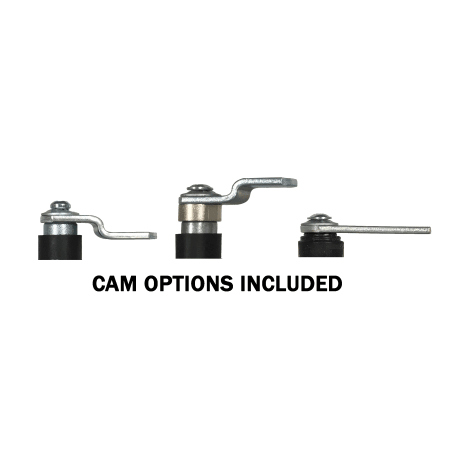

• Cam Capability: 1/4" to 1-1/2"
• Material: Zinc

Product Variations:

• EC780L: Left Handed Keypad
• EC780R: Right Handed Keypad
• EC780V: Vertical Keypad
• EC780VSLAM (This Model): Vertical Keypad with SLAM
• EC780VRAS: Vertical Keypad with RAS
