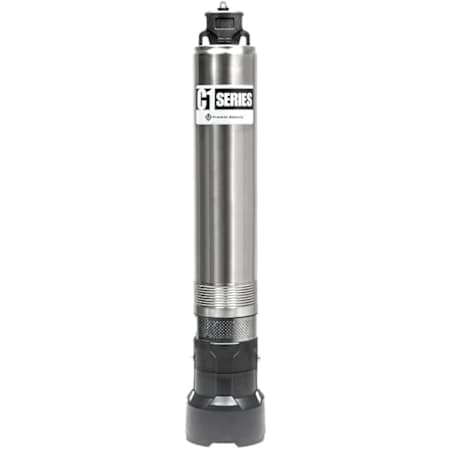

Little Giant 10 GPM 1/2 HP Stainless Steel Submersible Effluent / Cistern Pump (2W - 230V) (225' Shut-Off)
Model: 90301010|Item: bci5172171
from theC1 Collection
$638.82
85 In Stock
Shut Off Height
92 Ft - 3 Stage
$644.70
135 Ft - 4 Stage
$648.06
170 Ft - 5 Stage
$841.50
225 Ft - 6 Stage
$638.82
225 Ft - 6 Stage
Voltage
115 VAC
$638.82
230 VAC
$638.82
230 VAC
Free Shipping!
Leaves the Warehouse in 3 to 5 business days
-Details
Product Information:
- Franklin Electric - 10C1-05P4-2W230 - 1/2 HP Submersible Cistern Pump (230V)
- For gray water, filtered effluent service and water reclamation applications
- For rain catchment basins, aeration, pond/fountain and livestock water pumping
- 3.9" Submersible Pump (2-Wire 230V): 10 GPM - 225' Shut-Off Head
- 1/2 HP Motor: Heavy-duty 600 V 10' SJOOW jacketed lead
- Stainless Steel Single Shell Housing: Compact design while ensuring cool and quiet operation
- Bottom Suction Design: Include 5" removable base for mounting
- 1-1/4" FNPT Thermoplastic Discharge Head: Resists breakage during installation
- Molded Hydraulic Components: Optimized for increased performance and decreased power usage
- 12-Month Limited Warranty
Specifications
Dimensions and Measurements
Flow Rate (GPM) | 10 |
Length | 26 in. |
Outlet Diameter | 1.25 in. |
Product Weight | 16 lbs. |
Width | 5 in. |
Dimensions and Measurements
Flow Rate (GPM) | 10 |
Length | 26 in. |
Outlet Diameter | 1.25 in. |
Product Weight | 16 lbs. |
Width | 5 in. |
Characteristics and Features
Handles Solids | Yes |
Housing Material | Stainless Steel |
Impeller Material | Plastic |
Pump Material | Stainless Steel |
Submersible | Yes |
Characteristics and Features
Handles Solids | Yes |
Housing Material | Stainless Steel |
Impeller Material | Plastic |
Pump Material | Stainless Steel |
Submersible | Yes |
Electrical and Operational Information
Amperage | 4.5 |
Horsepower | 0.5 |
Maximum Operating Pressure (PSI) | 93 |
Voltage | 230 |
Electrical and Operational Information
Amperage | 4.5 |
Horsepower | 0.5 |
Maximum Operating Pressure (PSI) | 93 |
Voltage | 230 |
Warranty and Product Information
Commercial Warranty | 1 Year |
Manufacturer Warranty | 1 Year |
Warranty and Product Information
Commercial Warranty | 1 Year |
Manufacturer Warranty | 1 Year |
