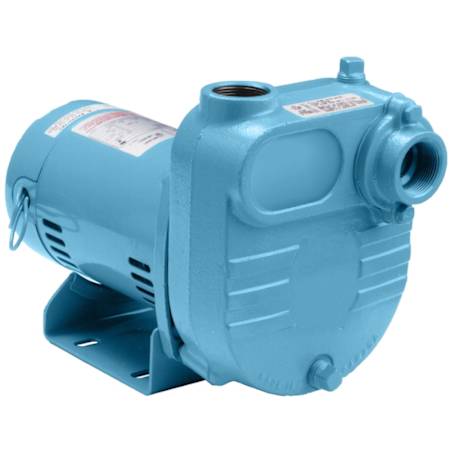

Little Giant 58 GPM 3/4 HP Cast Iron Surface Effluent Pump (115/230V)
Model: 621825|Item: bci2130466
from theBE Collection
Details
Product Information:
- Little Giant BE-S75 - 3/4 HP Self-Priming Surface Effluent Pump
- Engineered for pumping out liquid from septic tanks
- Any Dewatering/transfer application where small solids are present
- Robust Cast Iron Pump Casing: Extremely durable design for longevity in effluent applications
- Heavy Duty 3/4 HP Dual-Voltage 115/230V Motor: Voltage selector for simple connection to existing power source
- Self-Priming Design with Built-In Check Valve: After initial fill, no additional priming required
- Cast Iron Impeller: Provides superior abrasion resistance to solids present in water
- 1-1/4" FNPT Suction and Discharge: Easily connects to your current discharge line
- Drain Plug For Easy Maintenance and Servicing: Allows for easy emptying of pump housing
- Additional Specs:
- 58 GPM @ 20'; Shut Off @ 56'; Max Pressure: 23.8 PSI
- Amp Draw at 120/240V - Starting: 71.5A/36.2A; FLA: 14.3A/7.1A
- 120°F Liquid temperature rating
- 2-Year Limited Warranty
- *Note - Strainer (Sold Separately) recommended For Effluent Applications
Dimensions and Measurements
Discharge Diameter | 1.25 in. |
Flow Rate (GPM) | 58 |
Height | 10 in. |
Inlet Diameter | 1.25 in. |
Length | 15.3 in. |
Maximum Head Height | 56 ft. |
Minimum Head Height | 20 ft. |
Outlet Diameter | 1.25 in. |
Product Weight | 46 lbs. |
Water Connection | 1-1/4" |
Width | 7.6 in. |
Dimensions and Measurements
Discharge Diameter | 1.25 in. |
Flow Rate (GPM) | 58 |
Height | 10 in. |
Inlet Diameter | 1.25 in. |
Length | 15.3 in. |
Maximum Head Height | 56 ft. |
Minimum Head Height | 20 ft. |
Outlet Diameter | 1.25 in. |
Product Weight | 46 lbs. |
Water Connection | 1-1/4" |
Width | 7.6 in. |
Included Components
Built-In Check Valve | Yes |
Included Components
Built-In Check Valve | Yes |
Characteristics and Features
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Cast Iron |
Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Mechanical Seal Material | Ceramic Carbon |
Submersible | No |
Switch Type | Manual |
Water Connection Type | NPT |
Characteristics and Features
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Cast Iron |
Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Mechanical Seal Material | Ceramic Carbon |
Submersible | No |
Switch Type | Manual |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 14.3 |
Electrical Phases | 1 |
Horsepower | 0.75 |
Maximum Fluid Temperature | 140 °F |
Maximum Operating Pressure (PSI) | 23.8 |
Quick Clean Out | No |
Self Priming | Yes |
Starting Amps | 71.5 Amps |
Suction Head | 25 ft. |
Voltage | 120, 240 |
Electrical and Operational Information
Amperage | 14.3 |
Electrical Phases | 1 |
Horsepower | 0.75 |
Maximum Fluid Temperature | 140 °F |
Maximum Operating Pressure (PSI) | 23.8 |
Quick Clean Out | No |
Self Priming | Yes |
Starting Amps | 71.5 Amps |
Suction Head | 25 ft. |
Voltage | 120, 240 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Manufacturer Warranty | 2 Year |
Warranty and Product Information
Approved for Commercial Use | Yes |
Manufacturer Warranty | 2 Year |
