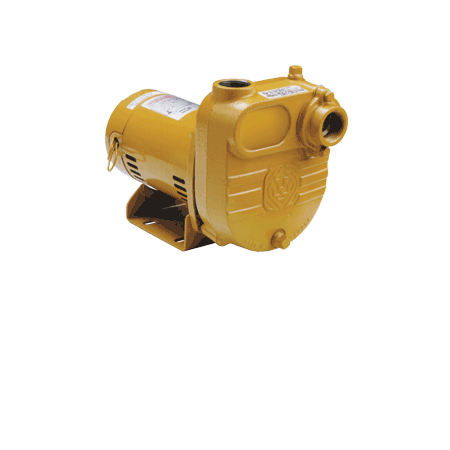

Little Giant BE 45 GPM 115V/230V Non-Submersible Effluent Pump
Model: 621815|Item: bci2130465
from theBE Collection
Details
The BE Series of submersible effluent pumps from Little Giant are specifically engineered to handle general dewatering, flood irrigation, livestock watering, and installations with septic tanks in areas with drainage problems.
Product Features:- 1/2 Horse Power with overload protection
- New cooler running motor which extends the life of the pump
- Designed for continuous duty
- Covered by 12 month limited warranty
- Handles 1/2" solids
- Cover made from: Cast iron
- Housing made from: Cast iron
- Impeller Type: Non-clog
- Impeller made from: Cast iron
- Switch Type: Manual
- Single phase operation
- 1/2 Horse Power
- Voltage: 115V/230V
- 12.4 Amp maximum operation
- 1-1/4" Discharge diameter
- Length: 9-1/2"
- Width: 11-1/2"
- Height: 13-1/2"

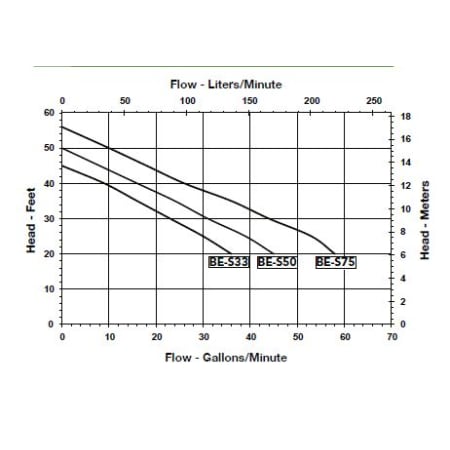

- Flow rates (GPH: gallons-per-hour):
- At 20 feet of head: 45
- At 25 feet of head: 39
- At 30 feet of head: 31
- At 35 feet of head: 24
- At 40 feet of head: 16
Dimensions and Measurements
Discharge Diameter | 1.25 in. |
Height | 10 in. |
Length | 15.3 in. |
Maximum Head Height | 50 in. |
Minimum Head Height | 20 in. |
Water Connection | 1-1/4" |
Width | 7.6 in. |
Dimensions and Measurements
Discharge Diameter | 1.25 in. |
Height | 10 in. |
Length | 15.3 in. |
Maximum Head Height | 50 in. |
Minimum Head Height | 20 in. |
Water Connection | 1-1/4" |
Width | 7.6 in. |
Characteristics and Features
Impeller Material | Cast Iron |
Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Switch Type | Manual |
Water Connection Type | NPT |
Characteristics and Features
Impeller Material | Cast Iron |
Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Switch Type | Manual |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 12.4 |
Electrical Phases | 1 |
Horsepower | .5 |
Maximum Fluid Temperature | 140 °F |
Voltage | 115, 230 |
Electrical and Operational Information
Amperage | 12.4 |
Electrical Phases | 1 |
Horsepower | .5 |
Maximum Fluid Temperature | 140 °F |
Voltage | 115, 230 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Warranty and Product Information
Approved for Commercial Use | Yes |
