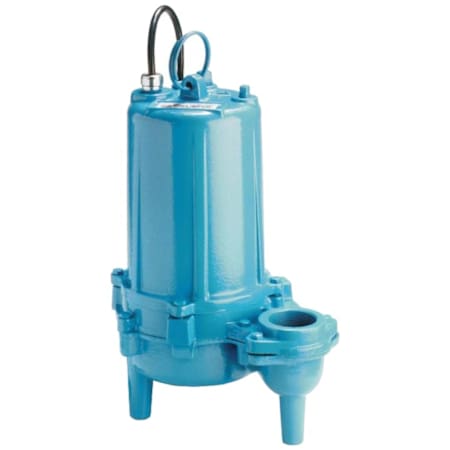

Little Giant WS102HAM-12 - 1 HP Cast Iron Sewage Pump (2") with PB Tether Float and 30' Cord (230V)
Model: 620259|Item: bci3798971
from theN/A Collection
Details
Features:
- Little Giant WS102HAM-12 - 1 HP Cast Iron Automatic Sewage Pump (230V): Continuous duty rated for light to medium demands
- Epoxy Coated Cast Iron Pump Housing w/ 2" Discharge: Minimizes rust and corrosion to extend overall pump life
- 1 HP PSC Motor w/ Thermal Overload Protection
- Energy saving design w/ low amp draw (13.6-Amps full load)
- Cooler running motor which extends the life of the pump
- Epoxy Coated Cast Iron Volute w/ Vortex Style Cast Iron Impeller: Non-clogging design passes up to 2" spherical solids
- Piggyback Tether Float Switch: Provides reliable automatic operation
- Nitrile Mechanical Shaft Seal w/ Carbon and Ceramic Faces: Assures maximum protection in harsh wastewater conditions
- Upper and Lower Ball Bearings: Minimizes friction while providing smooth and quiet operation
- Stainless Steel Screws, Bolts and Handle: Designed to prevent rust and corrosion
- 30-Foot SJTW Power Cord
- 48' Max Shutoff Head
- 3-Year Limited Warranty
Dimensions and Measurements
Cord Length | 30 in. |
Discharge Diameter | 2 in. |
Maximum Diameter Solids | 1.25 in. |
Dimensions and Measurements
Cord Length | 30 in. |
Discharge Diameter | 2 in. |
Maximum Diameter Solids | 1.25 in. |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Cast Iron |
Shutoff Head in Feet | 48 |
Submersible | Yes |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Cast Iron |
Shutoff Head in Feet | 48 |
Submersible | Yes |
Electrical and Operational Information
Amperage | 13.6 |
Horsepower | 1 |
Voltage | 230 |
Wattage | 2330.00 |
Electrical and Operational Information
Amperage | 13.6 |
Horsepower | 1 |
Voltage | 230 |
Wattage | 2330.00 |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
