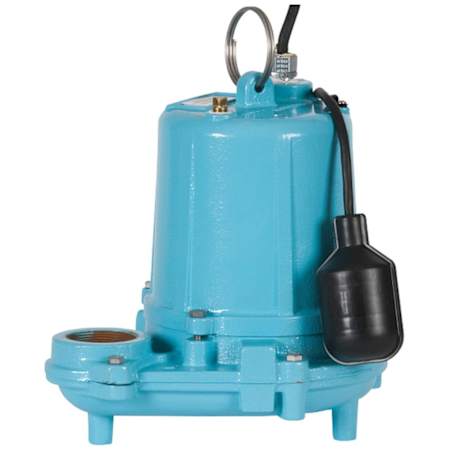

Little Giant WS50HAM-20 - 1/2 HP Cast Iron High Head Effluent Pump with PB Tether Float (20' Cord)
Model: 620219|Item: bci3798961
from theN/A Collection
Details
Features:
- WS50HAM-20 - 1/2 HP Cast Iron High Head Auto Effluent Pump (115V): Continuous duty rated for wastewater removal, dewatering or transfer
- Epoxy Coated Cast Iron Pump Housing: Minimizes rust and corrosion to extend overall pump life
- 1/2 HP Split-Phase Motor w/ Thermal Overload Protection: High-torque design w/ low amp draw (15-Amps full load)
- Piggyback Tethered Float Switch: Versatile design allows for automatic or manual operation
- Epoxy Coated Cast Iron Volute w/ Vortex Style Cast Iron Impeller: Non-clogging design passes up to 3/4" solids
- 2" FNPT Discharge: Easily connect to your current discharge without any changes
- Nitrile Mechanical Shaft Seal w/ Carbon and Ceramic Faces: Assures maximum protection in harsh wastewater conditions
- Upper and Lower Ball Bearings: Minimizes friction while providing smooth and quiet operation
- Stainless Steel Screws, Bolts and Handle: Designed to prevent rust and corrosion
- 20-Foot SJOW Power Cord
- 63' Max Shutoff Head
- 3-Year Limited Warranty
Dimensions and Measurements
Cord Length | 20 in. |
Discharge Diameter | 2 in. |
Flow Rate by Feet of Head | 130 gal / 5 ft |
Maximum Diameter Solids | 0.75 in. |
Dimensions and Measurements
Cord Length | 20 in. |
Discharge Diameter | 2 in. |
Flow Rate by Feet of Head | 130 gal / 5 ft |
Maximum Diameter Solids | 0.75 in. |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Cast Iron |
Manual Override | Yes |
Material | Cast Iron |
Mechanical Seal Material | Ceramic Carbon |
Shutoff Head in Feet | 63 |
Submersible | Yes |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Cast Iron |
Manual Override | Yes |
Material | Cast Iron |
Mechanical Seal Material | Ceramic Carbon |
Shutoff Head in Feet | 63 |
Submersible | Yes |
Electrical and Operational Information
Amperage | 15 |
Horsepower | 0.5 |
Starting Amps | 26.9 Amps |
Voltage | 120 |
Wattage | 1470.00 |
Electrical and Operational Information
Amperage | 15 |
Horsepower | 0.5 |
Starting Amps | 26.9 Amps |
Voltage | 120 |
Wattage | 1470.00 |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
