Little Giant
Little Giant 5 GPM 3/4 HP Deep Well Submersible Pump with Stainless Steel Dsch. (5 GPM at 320' - 491' Off) (2W - 230V) N/A

Little Giant 5 GPM 3/4 HP Deep Well Submersible Pump with Stainless Steel Dsch. (5 GPM at 320' - 491' Off) (2W - 230V)

Model: 559153
|
Item: bci5172115

$4,173.00
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 9 weeks
-
Return & Shipping Details

Details

Product Information:

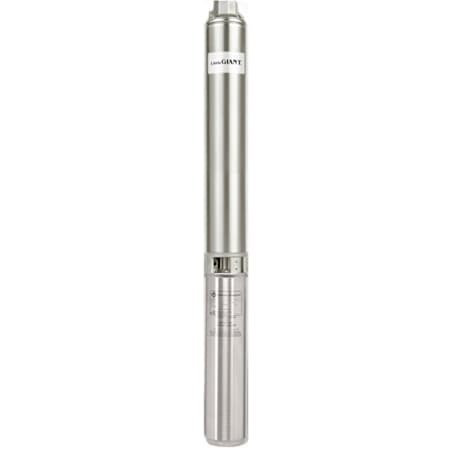

  • The Little Giant W-S Series - W5G07S12-22S Submersible Deep Well Pump
    • 3.9-Inch diameter well pump fits 4-inch diameter driven wells or larger
    • NSF/ANSI 372 certified for potable water

  • 304 Stainless Steel Pump Shell : Excellent corrosion-resistance in well water

  • Stainless Steel Discharge and Engineered Thermoplastic Motor Bracket: Provides extended pump life in wells with less debris

  • Built-Ins:
    • Check valve helps keep pump from rapid cycling and extends the motor lift
    • Suction screen helps keep debris out protecting the impellers

  • 3/4 HP Motor: 2-Wire (not including ground), 230-Volt Franklin Electric Motor: Control box not required

  • 12-Stage Pump Rated For 5 GPM: At 30 PSI it can deliver 5 GPM at a depth of 320 feet

  • Specs:
    • 3/4 HP, 230 Volts; 5 GPM; 2-Wire (plus ground)
    • 491-ft. Shut-off
    • 1-1/4-inch FNPT discharge; Stainless Steel Discharge

  • 1-Year Warranty

Additional Little Giant Links

Manufacturer Resources

Product ManualSpecification Sheet

Dimensions and Measurements

Flow Rate (GPM)
5
Height
3.9 in.
Length
31.4 in.
Outlet Diameter
1.25 in.
Product Weight
33 lbs.
Width
3.9 in.

Dimensions and Measurements

Flow Rate (GPM)
5
Height
3.9 in.
Length
31.4 in.
Outlet Diameter
1.25 in.
Product Weight
33 lbs.
Width
3.9 in.

Characteristics and Features

Configuration
Deep Well
Housing Material
Stainless Steel
Impeller Material
Plastic
Submersible
Yes

Characteristics and Features

Configuration
Deep Well
Housing Material
Stainless Steel
Impeller Material
Plastic
Submersible
Yes

Electrical and Operational Information

Feed Type
Continuous
Horsepower
0.75
Maximum Operating Pressure (PSI)
80
Voltage
230

Electrical and Operational Information

Feed Type
Continuous
Horsepower
0.75
Maximum Operating Pressure (PSI)
80
Voltage
230

Warranty and Product Information

Manufacturer Warranty
1 Year

Warranty and Product Information

Manufacturer Warranty
1 Year
