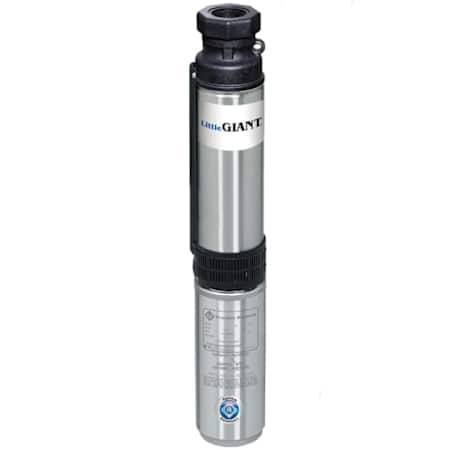

Little Giant 8 GPM 1/2 HP Deep Well Submersible Pump with Thermoplastic Dsch. (8 GPM at 140' - 282' Off) (2W - 115V)
Model: 559136|Item: bci5172140
$1,787.00
4 In Stock
Discharge Material
Thermoplastic
$1,787.00
Stainless Steel
$1,999.00
Thermoplastic
Flow Rate (GPM)
5 GPM
$1,974.00
8 GPM
$1,787.00
12 GPM
$1,585.00
8 GPM
Voltage
115 VAC
$1,787.00
230 VAC
$1,787.00
115 VAC
Free Shipping!
Leaves the Warehouse in 3 to 5 business days
-Details
Product Information:
- The Little Giant W-P Series - W8G05S7-21P Submersible Deep Well Pump
- 3.9-Inch diameter well pump fits 4-inch diameter driven wells or larger
- NSF/ANSI 372 certified for potable water
- 304 Stainless Steel Pump Shell : Excellent corrosion-resistance in well water
- Engineered Thermoplastic Discharge and Motor Bracket: For harsh well water conditions
- Built-Ins:
- Check valve helps keep pump from rapid cycling and extends the motor lift
- Suction screen helps keep debris out protecting the impellers
- 1/2 HP Motor: 2-Wire (not including ground), 115-Volt Franklin Electric Motor: Control box not required
- 7-Stage Pump Rated For 8 GPM: At 30 PSI it can deliver 8 GPM at a depth of 140 feet
- Specs:
- 1/2 HP, 115 Volts; 8 GPM; 2-Wire (plus ground)
- 282-ft. Shut-off
- 1-1/4-inch FNPT discharge; Thermoplastic discharge
- 1-Year Warranty
Dimensions and Measurements
Flow Rate (GPM) | 8 |
Height | 3.9 in. |
Length | 22.4 in. |
Outlet Diameter | 1.25 in. |
Product Weight | 25 lbs. |
Width | 3.9 in. |
Dimensions and Measurements
Flow Rate (GPM) | 8 |
Height | 3.9 in. |
Length | 22.4 in. |
Outlet Diameter | 1.25 in. |
Product Weight | 25 lbs. |
Width | 3.9 in. |
Characteristics and Features
Configuration | Deep Well |
Housing Material | Stainless Steel |
Impeller Material | Plastic |
Submersible | Yes |
Characteristics and Features
Configuration | Deep Well |
Housing Material | Stainless Steel |
Impeller Material | Plastic |
Submersible | Yes |
Electrical and Operational Information
Feed Type | Continuous |
Horsepower | 0.5 |
Maximum Operating Pressure (PSI) | 80 |
Voltage | 120 |
Electrical and Operational Information
Feed Type | Continuous |
Horsepower | 0.5 |
Maximum Operating Pressure (PSI) | 80 |
Voltage | 120 |
Warranty and Product Information
Manufacturer Warranty | 1 Year |
Warranty and Product Information
Manufacturer Warranty | 1 Year |
