Little Giant
Little Giant 85 GPM 2 HP High-Pressure Cast Iron Sprinkler Pump (55 Max PSI) N/A
Alternate Image
Little Giant 85 GPM 2 HP High-Pressure Cast Iron Sprinkler Pump (55 Max PSI) N/A
Alternate Image

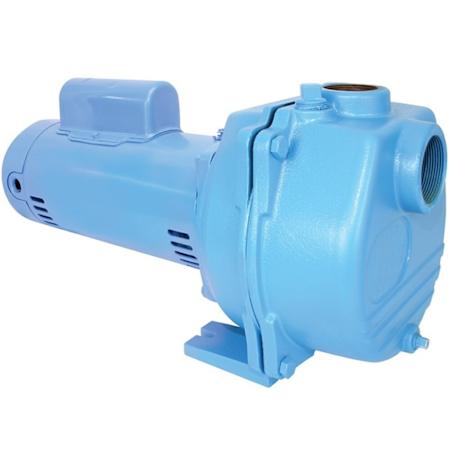

Little Giant 85 GPM 2 HP High-Pressure Cast Iron Sprinkler Pump (55 Max PSI)

Model: 558298
|
Item: bci5172132

$1,325.60
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 9 weeks
-
Return & Shipping Details

Details

Product Information:

  • 2 HP Lawn High-Pressure Sprinkler Pump
    • For use in underground or above ground lawn sprinkling systems
    • Provides up to 55 Max PSI

  • Heavy-Duty Cast Iron Housing and Seal Plate: Designed for years of service and reliability

  • 230 Volt Heavy-Duty Century Motor (3450 RPM): Low amp draw with single-phase capacitor start

  • Self-Priming Design with Priming Plug: After initial fill, no additional priming required

  • 5/8" Rotating Mechanical Seal: Provides a reliable seal against water leakage

  • Brass Impeller, Engineered Thermoplastic Diffuser Nozzle and Venturi: Designed for the highest pump efficiency and longevity

  • Buna-N Elastomers, Carbon-Ceramic Seal and SS Motor Shaft: Provides corrosion resistance and 110°F max operating temperature

  • Built-In Drain Plug: Makes it easy to drain the pump before storage

  • 2-Year Warranty

Additional Little Giant Links

Manufacturer Resources

Product Manual

Dimensions and Measurements

Flow Rate (GPM)
85
Inlet Diameter
2 in.
Length
21 in.
Outlet Diameter
1.5 in.
Product Weight
73 lbs.
Width
12 in.

Dimensions and Measurements

Flow Rate (GPM)
85
Inlet Diameter
2 in.
Length
21 in.
Outlet Diameter
1.5 in.
Product Weight
73 lbs.
Width
12 in.

Characteristics and Features

Housing Material
Cast Iron
Impeller Material
Brass
Mechanical Seal Material
Ceramic Carbon
Submersible
No

Characteristics and Features

Housing Material
Cast Iron
Impeller Material
Brass
Mechanical Seal Material
Ceramic Carbon
Submersible
No

Electrical and Operational Information

Amperage
11.2
Horsepower
2
Maximum Operating Pressure (PSI)
55
Self Priming
Yes
Suction Head
25 ft.
Voltage
240

Electrical and Operational Information

Amperage
11.2
Horsepower
2
Maximum Operating Pressure (PSI)
55
Self Priming
Yes
Suction Head
25 ft.
Voltage
240

Warranty and Product Information

Manufacturer Warranty
2 Year

Warranty and Product Information

Manufacturer Warranty
2 Year
