Little Giant
Little Giant 97 GPM 2 HP Self-Priming Cast Iron Sprinkler Pump N/A
Little Giant 97 GPM 2 HP Self-Priming Cast Iron Sprinkler Pump N/A
Alternate Image

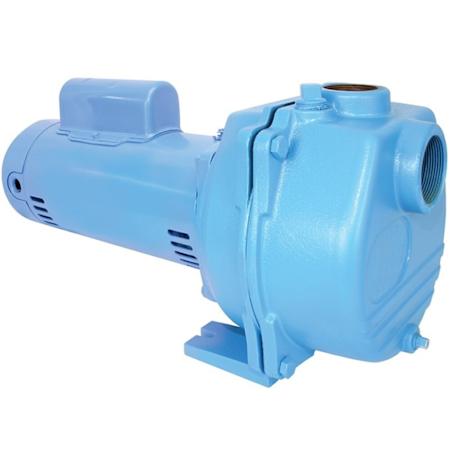

Little Giant 97 GPM 2 HP Self-Priming Cast Iron Sprinkler Pump

Model: 558296
|
Item: bci5172082

$979.44
7 In Stock

Horsepower

1-1/2-HP
$783.87
2-HP
$979.44
2-HP (High-Pressure)
$979.44
placeholder
Free Shipping!
Leaves the Warehouse in 3 to 5 business days
-
Return & Shipping Details

Details

Product Information:

  • 2 HP Lawn Sprinkler Pump
    • For use in underground or above ground lawn sprinkling systems
    • Also for garden irrigation, boosting household water pressure
    • Can be used for recirculation of large volumes of wat

  • Heavy-Duty Cast Iron Housing and Seal Plate: Designed for years of service and reliability

  • 230 Volt Heavy-Duty Century Motor (3450 RPM): Low amp draw with single-phase capacitor start

  • Self-Priming Design with Priming Plug: After initial fill, no additional priming required

  • 5/8" Rotating Mechanical Seal: Provides a reliable seal against water leakage

  • Brass Impeller, Engineered Thermoplastic Diffuser Nozzle and Venturi: Designed for the highest pump efficiency and longevity

  • Buna-N Elastomers, Carbon-Ceramic Seal and SS Motor Shaft: Provides corrosion resistance and 110°F max operating temperature

  • Built-In Drain Plug: Makes it easy to drain the pump before storage

  • 2-Year Warranty

Additional Little Giant Links

Manufacturer Resources

Product ManualSpecification Sheet

Dimensions and Measurements

Flow Rate (GPM)
97
Height
12 in.
Inlet Diameter
2 in.
Length
21 in.
Outlet Diameter
1.5 in.
Product Weight
76 lbs.
Water Pressure (Max)
48 PSI
Width
12 in.

Dimensions and Measurements

Flow Rate (GPM)
97
Height
12 in.
Inlet Diameter
2 in.
Length
21 in.
Outlet Diameter
1.5 in.
Product Weight
76 lbs.
Water Pressure (Max)
48 PSI
Width
12 in.

Characteristics and Features

Housing Material
Cast Iron
Impeller Material
Brass
Mechanical Seal Material
Ceramic Carbon
Submersible
No

Characteristics and Features

Housing Material
Cast Iron
Impeller Material
Brass
Mechanical Seal Material
Ceramic Carbon
Submersible
No

Electrical and Operational Information

Amperage
11.2
Horsepower
2
Maximum Operating Pressure (PSI)
48
Self Priming
Yes
Suction Head
25 ft.
Voltage
240

Electrical and Operational Information

Amperage
11.2
Horsepower
2
Maximum Operating Pressure (PSI)
48
Self Priming
Yes
Suction Head
25 ft.
Voltage
240

Warranty and Product Information

Manufacturer Warranty
2 Year

Warranty and Product Information

Manufacturer Warranty
2 Year
