Little Giant

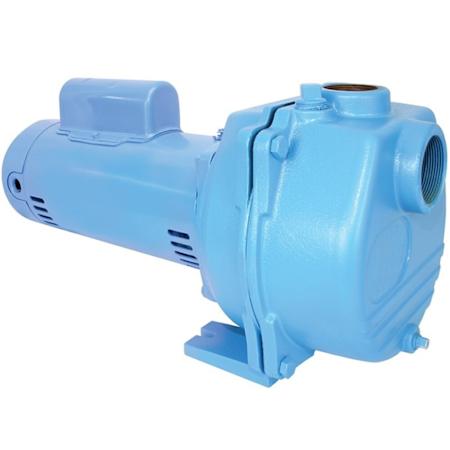

Little Giant 90 GPM 1-1/2 HP Cast Iron Sprinkler Pump N/A
Alternate Image
Little Giant 90 GPM 1-1/2 HP Cast Iron Sprinkler Pump N/A
Alternate Image

Little Giant 90 GPM 1-1/2 HP Cast Iron Sprinkler Pump

Model: 558295
|
Item: bci5172058

$1,060.80
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 9 weeks
-
Return & Shipping Details

Details

Product Information:

  • 1-1/2 HP Lawn Sprinkler Pump
    • For use in underground or above ground lawn sprinkling systems
    • Also for garden irrigation, boosting household water pressure
    • Can be used for recirculation of large volumes of water

  • Heavy-Duty Cast Iron Housing and Seal Plate: Designed for years of service and reliability

  • 115/230 Volt Heavy-Duty Century Motor (3450 RPM): Voltage selector for simple connection to existing power source

  • Self-Priming Design with Priming Plug: After initial fill, no additional priming required

  • 5/8" Rotating Mechanical Seal: Provides a reliable seal against water leakage

  • Built-In Drain Plug: Makes it easy to drain the pump before storage

  • Engineered Thermoplastic Impeller, Diffuser Nozzle and Venturi: Designed for the highest pump efficiency and longevity

  • Buna-N Elastomers, Carbon-Ceramic Seal and SS Motor Shaft: Provides corrosion resistance and 110°F max operating temperature

  • 2-Year Warranty

Additional Little Giant Links

Manufacturer Resources

Product ManualSpecification Sheet

Dimensions and Measurements

Flow Rate (GPM)
90
Inlet Diameter
2 in.
Length
19.5 in.
Outlet Diameter
1.5 in.
Product Weight
72 lbs.
Width
12 in.

Dimensions and Measurements

Flow Rate (GPM)
90
Inlet Diameter
2 in.
Length
19.5 in.
Outlet Diameter
1.5 in.
Product Weight
72 lbs.
Width
12 in.

Characteristics and Features

Housing Material
Cast Iron
Impeller Material
Plastic
Mechanical Seal Material
Ceramic Carbon
Submersible
No

Characteristics and Features

Housing Material
Cast Iron
Impeller Material
Plastic
Mechanical Seal Material
Ceramic Carbon
Submersible
No

Electrical and Operational Information

Amperage
12
Horsepower
1.5
Maximum Operating Pressure (PSI)
47
Self Priming
Yes
Suction Head
25 ft.
Voltage
120, 240

Electrical and Operational Information

Amperage
12
Horsepower
1.5
Maximum Operating Pressure (PSI)
47
Self Priming
Yes
Suction Head
25 ft.
Voltage
120, 240

Warranty and Product Information

Manufacturer Warranty
2 Year

Warranty and Product Information

Manufacturer Warranty
2 Year
