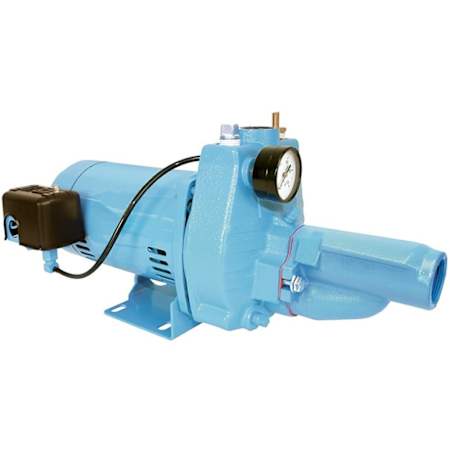

Little Giant 1/2 HP Cast Iron Convertible Jet Pump with Injector Kit
Model: 558281|Item: bci5172161
Details
Product Information:
- 1/2 HP Convertible Jet Pump with Deep Well Venturi
- Ideal for use in shallow wells (less than 25')
- Ideal for use in deep wells (25' to 90')
- Heavy-Duty Cast Iron Casing and Seal Plate: Built for years of reliable service
- 115/230 Volt Heavy-Duty Century Motor: Voltage selector for simple connection to existing power source
- Pressure Switch Preset at 30/50 PSI: Includes pressure gauge to easily monitor pump operation
- Stainless Steel Motor Shaft Seal and Dual Ball Bearings: Minimizes corrosion extends the life of the pump
- Engineered Thermoplastic Impeller, Diffuser Nozzle and Venturi: Designed for the highest pump efficiency and longevity
- 1-Inch Discharge: Compatible with most residential plumbing applications
- 2 Year Warranty
Dimensions and Measurements
Flow Rate (GPM) | 11.1 |
Height | 10 in. |
Inlet Diameter | 1.25 in. |
Length | 18.78 in. |
Outlet Diameter | 1 in. |
Product Weight | 38 lbs. |
Width | 9 in. |
Dimensions and Measurements
Flow Rate (GPM) | 11.1 |
Height | 10 in. |
Inlet Diameter | 1.25 in. |
Length | 18.78 in. |
Outlet Diameter | 1 in. |
Product Weight | 38 lbs. |
Width | 9 in. |
Characteristics and Features
Configuration | Convertible Well, Shallow Well, Deep Well |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Submersible | No |
Characteristics and Features
Configuration | Convertible Well, Shallow Well, Deep Well |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Submersible | No |
Electrical and Operational Information
Amperage | 4.5 |
Horsepower | 0.5 |
Maximum Operating Pressure (PSI) | 71 |
Suction Head | 90 ft. |
Voltage | 120, 240 |
Electrical and Operational Information
Amperage | 4.5 |
Horsepower | 0.5 |
Maximum Operating Pressure (PSI) | 71 |
Suction Head | 90 ft. |
Voltage | 120, 240 |
Warranty and Product Information
Manufacturer Warranty | 2 Year |
Warranty and Product Information
Manufacturer Warranty | 2 Year |
