Little Giant
Little Giant 26 GPM 1/2 HP WE-Series Submersible High Head Filtered Effluent Pump (2W - 115V) N/A
Little Giant 26 GPM 1/2 HP WE-Series Submersible High Head Filtered Effluent Pump (2W - 115V) N/A
Alternate Image

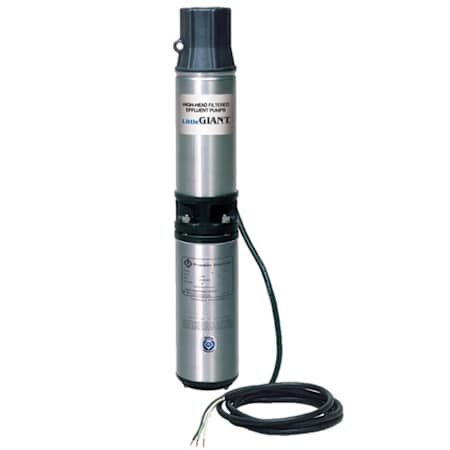

Little Giant 26 GPM 1/2 HP WE-Series Submersible High Head Filtered Effluent Pump (2W - 115V)

Model: 558223
|
Item: bci1103085

$779.50
Special Order

Shut Off Height

100 Ft - 3 Stage
$948.00
150 Ft - 4 Stage
$779.50

Voltage

115 VAC
$779.50
230 VAC
$859.01
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 9 weeks
-
Return & Shipping Details

Details

Product Information:

  • Little Giant WE20G05P4-21 - WE-Series High Head Filter Effluent Pump: Ideal for a wide variety of filtered effluent applications

  • 4" Submersible Pump (2-Wire 115V): Can be used with 4" I.D. or larger wells

  • Powered By Industry Standard Franklin Electric Motor: Proven superior quality and performance ensuring quiet operation

  • Hex Rubber Bearing with Extra-Large Surface
    • Provides shaft stability and multiple flow channels
    • Keeps small particles such as sand away from bearing surfaces

  • Removable, Built-In Check Valve: Prevents backflow and ensures system pressure

  • 1-1/4" NPT Thermoplastic Discharge Head: Minimizes friction while providing smooth and quiet operation

  • Proven "PPO" Staging: Allows for close tolerances and increased performance

  • Thermoplastic Discharge and Motor Brackets: Non-Corrosive design allows for increased pump life

  • Stainless Steel Up Thrust Washer: Prevents excessive wear in service applications

  • Additional Features: Heavy-Duty, 10' SJOW motor stripped leads

  • 2-Year Limited Warranty

Additional Little Giant Links

Manufacturer Resources

Product ManualSpecification Sheet

Dimensions and Measurements

Cord Length
120 in.
Depth
4 in.
Discharge Diameter
1.25 in.
Flow Rate (GPM)
26
Flow Rate by Feet of Head
26 gal / 25 ft, 24 gal / 50 ft, 11 gal / 150 ft, 16 gal / 100 ft
Height
31 in.
Length
23.91 in.
Maximum Diameter Solids
0.125 in.
Outlet Diameter
1.25 in.
Product Weight
25 lbs.
Shut Off Height
160 in.
Width
3.75 in.

Dimensions and Measurements

Cord Length
120 in.
Depth
4 in.
Discharge Diameter
1.25 in.
Flow Rate (GPM)
26
Flow Rate by Feet of Head
26 gal / 25 ft, 24 gal / 50 ft, 11 gal / 150 ft, 16 gal / 100 ft
Height
31 in.
Length
23.91 in.
Maximum Diameter Solids
0.125 in.
Outlet Diameter
1.25 in.
Product Weight
25 lbs.
Shut Off Height
160 in.
Width
3.75 in.

Included Components

Built-In Check Valve
Yes

Included Components

Built-In Check Valve
Yes

Characteristics and Features

Automatic
Yes
Configuration
Effluent Pump
Handles Solids
Yes
Housing Material
Stainless Steel
Impeller Material
Plastic
Material
Stainless Steel
Shutoff Head in Feet
160
Submersible
Yes

Characteristics and Features

Automatic
Yes
Configuration
Effluent Pump
Handles Solids
Yes
Housing Material
Stainless Steel
Impeller Material
Plastic
Material
Stainless Steel
Shutoff Head in Feet
160
Submersible
Yes

Electrical and Operational Information

Amperage
10
Frequency
60 Hertz
Horsepower
0.5
Maximum Operating Pressure (PSI)
48
Voltage
120
Wattage
670

Electrical and Operational Information

Amperage
10
Frequency
60 Hertz
Horsepower
0.5
Maximum Operating Pressure (PSI)
48
Voltage
120
Wattage
670

Warranty and Product Information

Manufacturer Warranty
2 Year

Warranty and Product Information

Manufacturer Warranty
2 Year
