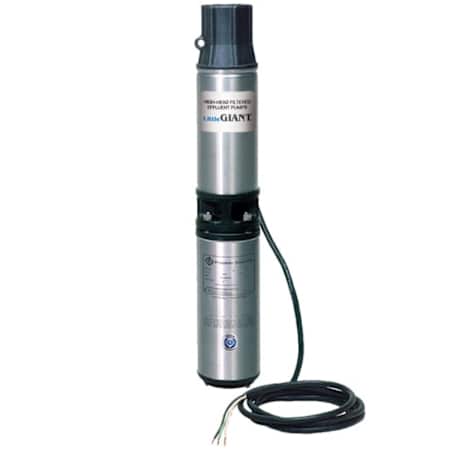

Little Giant 1/2 HP 10 GPM High Head Submersible 4" Stainless Steel Filtered Effluent / Fountain Pump (2W 230V)
Model: 558222|Item: bci1103084
from theWE Collection
$630.00
2 In Stock
Shut Off Height
100 Ft - 3 Stage
$812.28
150 Ft - 4 Stage
$661.50
250 Ft - 9 Stage
$630.00
250 Ft - 9 Stage
Free Shipping!
Leaves the Warehouse Tomorrow, October 19th
-Details
Product Information:
- WE Series - WE10G05P4-22 - 1/2 HP 10 GPM Filtered Effluent Pump (115V)
- Pump treated effluent longer distances for deep water and higher head applications
- Ideal for aeration, ornamental fountains and water fountains
- 4" Submersible Pump (2-Wire 230V): 15 GPM @ 50'; 10 GPM @ 150'
- 1/2 HP Franklin Electric Submersible Motor: Heavy-duty 300 V 10' SJOW jacketed leads
- Stainless Steel Housing: Proven PPO staging allows close tolerances and increased performance
- High Quality Top Bearing: For maximum durability and years of reliable service
- Hex Rubber Bearing
- Extra-large surface for shaft stability
- Multiple flow channels for keeping particles away from bearing surfaces
- Additional Features
- Removable built-in check valve
- Non-corrosive thermoplastic discharge and motor brackets
- Stainless steel up thrust washer prevents excessive wear in service applications
- CSA Listed
- 36-Month Warranty
Specifications
Dimensions and Measurements
Cord Length | 10 ft. |
Cord Length (ft) | 10 ft. |
Depth | 4 in. |
Discharge Diameter | 1.25 in. |
Flow Rate (GPM) | 10 |
Flow Rate by Feet of Head | 13 gal / 100 ft, 15 gal / 50 ft, 11 gal / 150 ft, 8 gal / 200 ft, 16 gal / 25 ft |
Height | 31 in. |
Length | 21.9 in. |
Outlet Diameter | 1.25 in. |
Product Weight | 24 lbs. |
Shut Off Height | 250 in. |
Width | 3.75 in. |
Dimensions and Measurements
Cord Length | 10 ft. |
Cord Length (ft) | 10 ft. |
Depth | 4 in. |
Discharge Diameter | 1.25 in. |
Flow Rate (GPM) | 10 |
Flow Rate by Feet of Head | 13 gal / 100 ft, 15 gal / 50 ft, 11 gal / 150 ft, 8 gal / 200 ft, 16 gal / 25 ft |
Height | 31 in. |
Length | 21.9 in. |
Outlet Diameter | 1.25 in. |
Product Weight | 24 lbs. |
Shut Off Height | 250 in. |
Width | 3.75 in. |
Included Components
Built-In Check Valve | Yes |
Included Components
Built-In Check Valve | Yes |
Characteristics and Features
Configuration | Effluent Pump |
Handles Solids | Yes |
Housing Material | Stainless Steel |
Impeller Material | Plastic |
Material | Stainless Steel |
Pump Material | Stainless Steel |
Submersible | Yes |
Characteristics and Features
Configuration | Effluent Pump |
Handles Solids | Yes |
Housing Material | Stainless Steel |
Impeller Material | Plastic |
Material | Stainless Steel |
Pump Material | Stainless Steel |
Submersible | Yes |
Electrical and Operational Information
Amperage | 5 |
Frequency | 60 Hertz |
Horsepower | 0.5 |
Starting Amps | 23.2 Amps |
Voltage | 230 |
Wattage | 670 |
Electrical and Operational Information
Amperage | 5 |
Frequency | 60 Hertz |
Horsepower | 0.5 |
Starting Amps | 23.2 Amps |
Voltage | 230 |
Wattage | 670 |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
