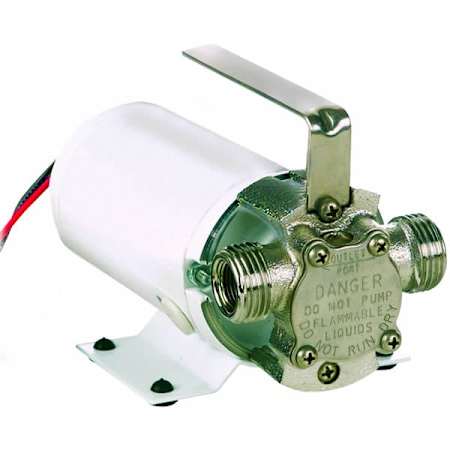

Little Giant 5 GPM 12V Flex-Vane Non-Submersible Transfer Pump
Model: 555203|Item: bci912314
from theFlex Vane Collection
$211.40
Finish: Steel -
Special Order
Material
Stainless Steel
$211.40
Plated Brass
$212.73
Stainless Steel
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-Details
Product Information:
- Portable 12-Volt DC Non-Submersible Transfer Pump
- Ideal for pumping out boat bilges and stock tanks
- Great for water transfer to an RV and other applications
- Stainless Steel Pump Head and Steel Motor Cover: Designed to be corrosion and rust resistant
- Dual Threaded Intake and Discharge
- 3/4" Male garden hose thread
- 3/8" Female NPT
- Convenient and Ready To Use
- Includes 12" battery leads with clips
- (Battery NOT Included)
- Dual-Purpose Design: Self-priming for instant delivery or de-watering up to 6'
- Please Note - Rated For Intermittent Duty: 15 Minutes ON and 45 minutes OFF
Specifications
Dimensions and Measurements
Cord Length | 7 ft. |
Cord Length (ft) | 7 ft. |
Depth | 6.62 in. |
Discharge Diameter | 0.375 in. |
Flow Rate (GPM) | 5 |
Flow Rate by Feet of Head | 4 gal / 10 ft, 4.3 gal / 5 ft, 3.4 gal / 20 ft, 2.5 gal / 30 ft, 5 gal / 1 ft |
Height | 4.2 in. |
Inlet Diameter | 0.75 in. |
Length | 6 in. |
Maximum Head Height | 46 ft. |
Minimum Head Height | 1 ft. |
Outlet Diameter | 0.75 in. |
Product Weight | 4 lbs. |
Shut Off Height | 16 in. |
Shut Off Pressure | 19.9 |
Water Connection | 3/4" |
Water Pressure (Max) | 19.9 PSI |
Width | 4 in. |
Dimensions and Measurements
Cord Length | 7 ft. |
Cord Length (ft) | 7 ft. |
Depth | 6.62 in. |
Discharge Diameter | 0.375 in. |
Flow Rate (GPM) | 5 |
Flow Rate by Feet of Head | 4 gal / 10 ft, 4.3 gal / 5 ft, 3.4 gal / 20 ft, 2.5 gal / 30 ft, 5 gal / 1 ft |
Height | 4.2 in. |
Inlet Diameter | 0.75 in. |
Length | 6 in. |
Maximum Head Height | 46 ft. |
Minimum Head Height | 1 ft. |
Outlet Diameter | 0.75 in. |
Product Weight | 4 lbs. |
Shut Off Height | 16 in. |
Shut Off Pressure | 19.9 |
Water Connection | 3/4" |
Water Pressure (Max) | 19.9 PSI |
Width | 4 in. |
Characteristics and Features
Automatic | Yes |
Configuration | Transfer Pump |
Impeller Material | Plastic |
Material | Brass |
Material Casing | Brass |
Material Housing | Stainless Steel |
Shutoff Head in Feet | 46 |
Submersible | No |
Switch Type | Manual |
Water Connection Type | NPT |
Characteristics and Features
Automatic | Yes |
Configuration | Transfer Pump |
Impeller Material | Plastic |
Material | Brass |
Material Casing | Brass |
Material Housing | Stainless Steel |
Shutoff Head in Feet | 46 |
Submersible | No |
Switch Type | Manual |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 7 |
Horsepower | 0.1 |
Maximum Fluid Temperature | 120 °F |
Maximum Operating Pressure (PSI) | 19.9 |
Self Priming | Yes |
Suction Head | 7 ft. |
Voltage | 12 |
Electrical and Operational Information
Amperage | 7 |
Horsepower | 0.1 |
Maximum Fluid Temperature | 120 °F |
Maximum Operating Pressure (PSI) | 19.9 |
Self Priming | Yes |
Suction Head | 7 ft. |
Voltage | 12 |
Warranty and Product Information
Approved for Commercial Use | Yes |
CARB approved | Yes |
Manufacturer Warranty | 1 Year |
Warranty and Product Information
Approved for Commercial Use | Yes |
CARB approved | Yes |
Manufacturer Warranty | 1 Year |
