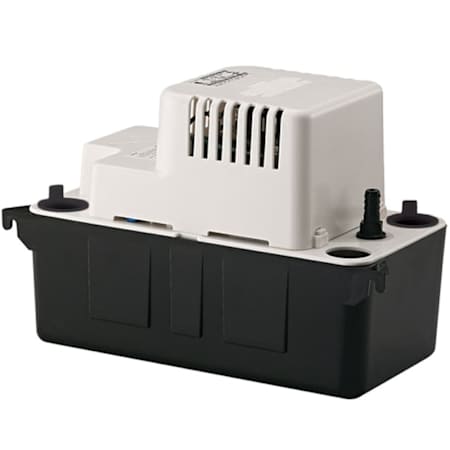

Little Giant 1.3 GPM Thermoplastic Condensate Removal Pump (20' Lift)
Model: 554435|Item: bci5172254
Details
Product Information:
- Automatic Condensate Removal Pump: Capable of pumping up to 20' vertically
- Ideal For Household Applications: Removes condensation from air handlers, boilers and furnaces
- High-Impact ABS Thermoplastic Construction and 1/2 Gallon Reservoir: Rust-proof and suitable for high-efficiency gas furnaces
- Removable Built-In Check Valve: Designed for ease of maintenance
- 3 Inlet Drain Holes: Designed for versatile applications
- Easy Installation, Ready For Household Use: Includes 20' of poly tubing
Specifications
Dimensions and Measurements
Cord Length | 6 ft. |
Cord Length (ft) | 6 ft. |
Depth | 11 in. |
Flow Rate (GPM) | 1.3 |

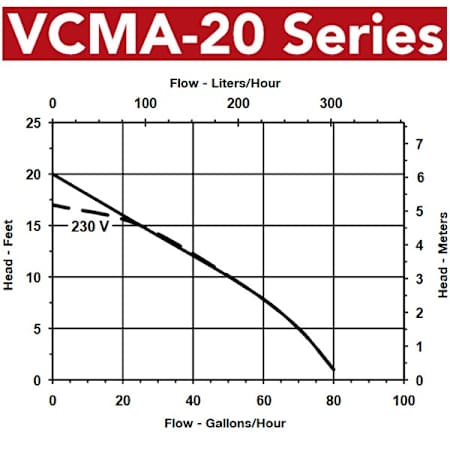

Flow Rate by Feet of Head | 1.16 gal / 5 ft, 0.41 gal / 15 ft, 1.33 gal / 1 ft |
Height | 7 in. |
Inlet Diameter | 1.125 in. |
Length | 11 in. |
Outlet Diameter | 0.375 in. |
Product Weight | 6 lbs. |
Shut Off Height | 20 in. |
Shut Off Pressure | 8.7 |
Width | 5 in. |
Dimensions and Measurements
Cord Length | 6 ft. |
Cord Length (ft) | 6 ft. |
Depth | 11 in. |
Flow Rate (GPM) | 1.3 |
Flow Rate by Feet of Head | 1.16 gal / 5 ft, 0.41 gal / 15 ft, 1.33 gal / 1 ft |
Height | 7 in. |
Inlet Diameter | 1.125 in. |
Length | 11 in. |
Outlet Diameter | 0.375 in. |
Product Weight | 6 lbs. |
Shut Off Height | 20 in. |
Shut Off Pressure | 8.7 |
Width | 5 in. |
Characteristics and Features
Automatic | Yes |
Housing Material | Thermoplastic |
Impeller Material | Plastic |
Shutoff Head in Feet | 20 |
Submersible | No |
Characteristics and Features
Automatic | Yes |
Housing Material | Thermoplastic |
Impeller Material | Plastic |
Shutoff Head in Feet | 20 |
Submersible | No |
Electrical and Operational Information
Amperage | 1.5 |
Frequency | 60 Hertz |
Horsepower | 0.03 |
Voltage | 120 |
Wattage | 93 |
Electrical and Operational Information
Amperage | 1.5 |
Frequency | 60 Hertz |
Horsepower | 0.03 |
Voltage | 120 |
Wattage | 93 |
Warranty and Product Information
CARB approved | Yes |
Certifications | UL, CSA |
Warranty and Product Information
CARB approved | Yes |
Certifications | UL, CSA |
