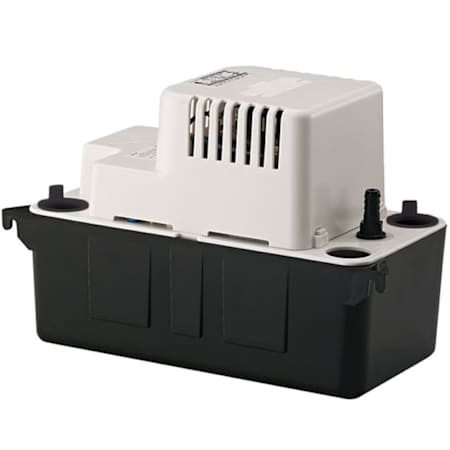

Little Giant VCMA 65 GPH 115V Automatic Condensate Removal Pump With 6' Cord and Safety Switch
Model: 554405|Item: bci912071
from theVCMA Collection
Details
Little Giant VCMA Series is ideal for collecting, detecting, automatically removing condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required.
Product Features:- 1/50 Horse Power with overload protection
- New cooler running motor which extends the life of the pump
- Designed for continuous duty
- Covered by 12 month limited warranty
- Does not handle solid particulates
- Cover made from: Plastic
- Housing made from: Plastic
- Impeller made from: Glass-filled polypropylene
- Switch Type: Automatic
- Single phase operation
- 6' Cord included
- cCSAus listed
- 1/50 Horse Power
- Voltage: 115V
- 1.0 Amp maximum operation
- 3/8" Discharge diameter
- Length: 11"
- Width: 5"
- Height: 7"
- Flow rates (GPH: gallons-per-hour):
- At 1 feet of head: 65
- At 5 feet of head: 50
- At 9 feet of head: 30
Dimensions and Measurements
Cord Length | 6 in. |
Depth | 11 in. |
Discharge Diameter | 0.375 in. |
Flow Rate by Feet of Head | 1.08 gal / 1 ft, 0.83 gal / 5 ft |
Height | 7 in. |
Length | 11 in. |
Maximum Head Height | 15 in. |
Minimum Head Height | 1 in. |
Product Weight | 4.6 lbs. |
Shut Off Height | 15 in. |
Shut Off Pressure | 6.5 |
Water Connection | 1-1/8" |
Water Pressure (Max) | 6.5 PSI |
Width | 5 in. |
Dimensions and Measurements
Cord Length | 6 in. |
Depth | 11 in. |
Discharge Diameter | 0.375 in. |
Flow Rate by Feet of Head | 1.08 gal / 1 ft, 0.83 gal / 5 ft |
Height | 7 in. |
Length | 11 in. |
Maximum Head Height | 15 in. |
Minimum Head Height | 1 in. |
Product Weight | 4.6 lbs. |
Shut Off Height | 15 in. |
Shut Off Pressure | 6.5 |
Water Connection | 1-1/8" |
Water Pressure (Max) | 6.5 PSI |
Width | 5 in. |
Characteristics and Features
Automatic | Yes |
Impeller Material | Plastic |
Material | Plastic |
Material Casing | Plastic |
Material Housing | Plastic |
Shutoff Head in Feet | 15 |
Submersible | No |
Switch Type | Automatic |
Water Connection Type | NPT |
Characteristics and Features
Automatic | Yes |
Impeller Material | Plastic |
Material | Plastic |
Material Casing | Plastic |
Material Housing | Plastic |
Shutoff Head in Feet | 15 |
Submersible | No |
Switch Type | Automatic |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 1 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.02 |
Maximum Fluid Temperature | 140 °F |
Voltage | 115 |
Wattage | 60 |
Electrical and Operational Information
Amperage | 1 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.02 |
Maximum Fluid Temperature | 140 °F |
Voltage | 115 |
Wattage | 60 |
Warranty and Product Information
Approved for Commercial Use | Yes |
CARB approved | Yes |
Certifications | UL, CSA |
Warranty and Product Information
Approved for Commercial Use | Yes |
CARB approved | Yes |
Certifications | UL, CSA |
