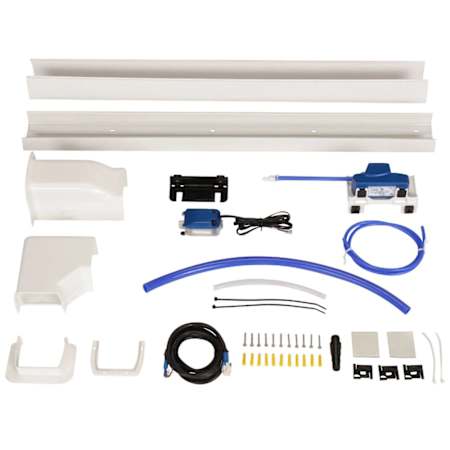

Little Giant 2.7 GPH Mini-Split Line Set Condensate Pump Kit (120-240V)

Product Information:

• VCMA-20ULST-PRO Series High Capacity Condensate Removal Pump


• Little Giant EC-1K-DV Series Mini-Split Line Set Kit
  • Capable of pumping up to 84 GPH @ 1', 60 GPH @10' (Off @ 21')
  • Includes a pump, noise reduction, and line set duct
  • Accommodates multiple electrical requirement within one pump


• Ideal For Air Conditioning, Refrigeration and Dehumidification Applications
  • Also for high efficiency oil and gas-fired condensing furnaces/boiler equipment
  • Capable of operating from a wide range of supply voltage 110-240V


• High-Impact ABS Thermoplastic Housing/Motor Cover Volute and Switch Float


• Includes EC-1-DV Mini Condensate Pump
  • Engineered to minimize rust and corrosion in moist environments
  • 2.7 GPH flow @ 1' ; 33' shut off (Max. recommended)


• Thermally Protected, 1/30 HP High Performance Motor (115V)
  • Quiet operation, only 21 dB(A)
  • Hall effect switching and Large inlet filter
  • Energy efficient at only 1.5A; Improved cooling for longer life


• 3/8" O.D. Barbed Discharge Adapter: Multi-size hose drain adapter fits all popular drain hose connections


• EC-1K-DV Line Set Duct : Makes servicing this pump an easy task


• Internal Float Switch For Start and Stop Operation with Ext. Test Switch
  • Enough room to install EC-1-DV pump, line-set pipe, electrical wiring and drain hoses
  • Vertical centrifugal pump design, for water up to 140F
  • Provides a clean, finished look in any decor
  • Easily accessible for maintenance or cleaning - No tools required


• External, Safety Overflow Switch with (2) 5" Switch Lead Wires


• Line Set Includes:: Dual function NO and NC operation (Set to NO from factory)


• Oil Resistant 1/3 Gallon Tank with (3) 1-1/8" Inlets with Removable Cap Plug
  • Right- or left-side installation options
  • 2.1" x 3.0" (5.3 cm x 7.6 cm) Line Set Duct inside dimension
  • Suits the needs of a wide variety of residential/HVAC applications


• "Quick Install" Wall Mounting Bracket and Rubber Pump Feet
  • 19.7" (50 cm) drain hose tubing
  • Detachable power cord 84" (213.4 cm)
  • Minimizes noises and vibration during operation
  • 6' Power Cord with 3-Prong Plug
  • 90 degrees elbow - for locating pump reservoir
  • 31.5" (80 cm) straight line set cover


• Includes: 20' 3/8" I.D. Vinyl Discharge Tubing


• 2-Year Limited Warranty: Room inside Line Set Duct for 3/8" and 5/8" line set pipe


• *Note Replaces Model 554550
  • Twist motion snap-lock clips and cable ties to secure the line set
  • Pump enclosure and pump mounting bracket
  • Wall fasteners included (to secure Line Set Duct to wall)
  • Air conditioner trim and bracket for finished look
  • Includes ceiling plate when pump enclosure


• 2-Year Warranty
