Little Giant 2.5 GPH 230V Condensate Removal Pump with Safety Switch

2.5 GPH 230V Condensate Removal Pump with Safety Switch

The EC-400 is a complete pumping system designed to remove condensation from wall mounted, ceiling and coil split-system air conditioning equipment when gravity drainage is not possible. Compact design allows installation in most split-systems. Components can be placed into the air handler or the pump can be placed up to 3' above the air handler in the ceiling void or inside trunking conduit. A three position symmetrical float sensing system assures reliable ON, OFF and OVERFLOW DETECTION functions. Intake tubing, tube clamps, adhesive tape and vent tubing included.

• For intermittent operation, maximum 50% duty cycle

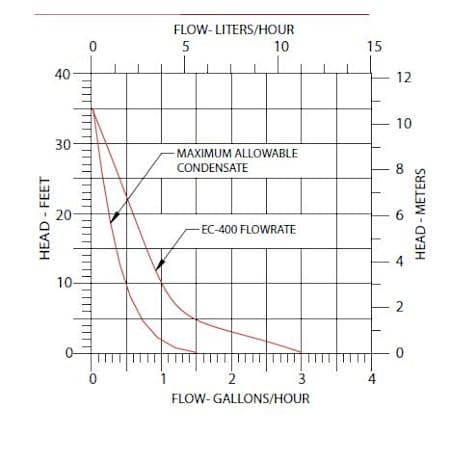

• Condensate produced in application must be no more than half the pump's flow rate for any given head
• Use with most mini-split air conditioning units up to 25,000 BTU/hr
• Self-priming pump can be placed up to 3' above reservoir
• Includes safety switch, suction tubing, vent tubing and drain tubing, and tubing adapter
