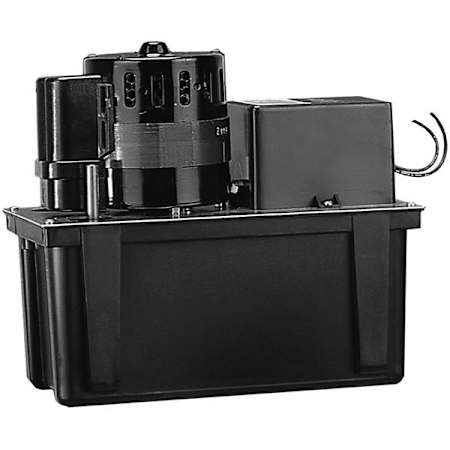

Little Giant 7.5 GPM Thermoplastic Condensate Removal Pump with Safety Switch (45' Lift)
Model: 553240|Item: bci2130417
$469.00
14 In Stock
Voltage
115 VAC
$469.00
230 VAC
$517.80
115 VAC
Free Shipping!
Leaves the Warehouse Today, October 15th
-Details
Product Information:
- VCL-45 Series Condensate Removal Pump (1-Gallon Tank): Pumps up to 450 GPH @ 1', 415 GPH @9', 380 GPH @15' (Off @ 45')
- Ideal For Air Conditioning, Refrigeration and Dehumidification Applications: Also for high efficiency oil and gas-fired condensing furnaces/boiler equipment
- High-Impact ABS Thermoplastic Construction: Engineered to minimize rust and corrosion in moist environments
- Thermally Protected, 1/5 HP Fan Cooled PCS Motor (115V): Energy efficient at only 3.5A; Improved cooling for longer life
- 3/8/2025: For use with 3/8" vinyl discharge tubing (Not included)
- Solid Polymer Float Switch For Start and Stop Operation: Vertical centrifugal pump design, for water up to 120F
- Safety Overflow Switch with (2) 5" Switch Lead Wires: Dual function NO and NC operation (Set to NO from factory)
- 1-Gallon Tank with (2) 1-1/8" Inlets: Suits the needs of a wide variety of residential/HVAC applications
- Stainless Steel Motor Shaft and Galvanized Steel Tank Cover: Sturdy design provides piece of mind for reliable operation
- 6' Power Cord with 3-Prong Plug
- 2-Year Limited Warranty
Specifications
Dimensions and Measurements
Cord Length | 6 ft. |
Cord Length (ft) | 6 ft. |
Depth | 12 in. |
Discharge Diameter | 0.375 in. |
Flow Rate (GPM) | 7.5 |
Flow Rate by Feet of Head | 6.3 gal / 15 ft, 6.92 gal / 9 ft, 7.33 gal / 5 ft, 7.5 gal / 1 ft, 7.42 gal / 3 ft |
Height | 10.5 in. |
Inlet Diameter | 1.125 in. |
Length | 12.11 in. |
Maximum Head Height | 45 ft. |
Minimum Head Height | 1 ft. |
Outlet Diameter | 0.375 in. |
Product Weight | 13 lbs. |
Shut Off Height | 45 in. |
Shut Off Pressure | 19.5 |
Water Connection | 1-1/8" |
Water Pressure (Max) | 19.5 PSI |
Width | 6 in. |
Dimensions and Measurements
Cord Length | 6 ft. |
Cord Length (ft) | 6 ft. |
Depth | 12 in. |
Discharge Diameter | 0.375 in. |
Flow Rate (GPM) | 7.5 |
Flow Rate by Feet of Head | 6.3 gal / 15 ft, 6.92 gal / 9 ft, 7.33 gal / 5 ft, 7.5 gal / 1 ft, 7.42 gal / 3 ft |
Height | 10.5 in. |
Inlet Diameter | 1.125 in. |
Length | 12.11 in. |
Maximum Head Height | 45 ft. |
Minimum Head Height | 1 ft. |
Outlet Diameter | 0.375 in. |
Product Weight | 13 lbs. |
Shut Off Height | 45 in. |
Shut Off Pressure | 19.5 |
Water Connection | 1-1/8" |
Water Pressure (Max) | 19.5 PSI |
Width | 6 in. |
Characteristics and Features
Automatic | Yes |
Housing Material | Thermoplastic |
Impeller Material | Plastic |
Material | Plastic |
Material Casing | Plastic, Stainless Steel |
Material Housing | Plastic |
Shutoff Head in Feet | 45 |
Submersible | No |
Switch Type | Automatic |
Water Connection Type | NPT |
Characteristics and Features
Automatic | Yes |
Housing Material | Thermoplastic |
Impeller Material | Plastic |
Material | Plastic |
Material Casing | Plastic, Stainless Steel |
Material Housing | Plastic |
Shutoff Head in Feet | 45 |
Submersible | No |
Switch Type | Automatic |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 3.5 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.2 |
Maximum Fluid Temperature | 140 °F |
Maximum Operating Pressure (PSI) | 19.5 |
Voltage | 120 |
Wattage | 185 |
Electrical and Operational Information
Amperage | 3.5 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.2 |
Maximum Fluid Temperature | 140 °F |
Maximum Operating Pressure (PSI) | 19.5 |
Voltage | 120 |
Wattage | 185 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL |
Manufacturer Warranty | 1 Year |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL |
Manufacturer Warranty | 1 Year |
