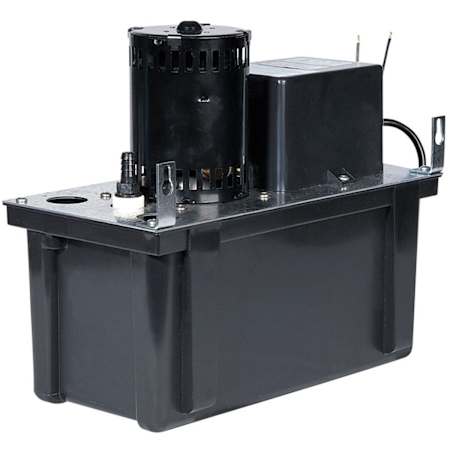

Little Giant 4.1 GPM Thermoplastic Condensate Removal Pump with Safety Switch (24' Lift)
Model: 553201|Item: bci2130415
Details
Product Information:
- VCL-24 Series Condensate Removal Pump (1-Gallon Tank): Capable of pumping up to 270 GPH @ 1', 210 GPH @9' (Off @ 24')
- Ideal For Air Conditioning, Refrigeration and Dehumidification Applications: Also for high efficiency oil and gas-fired condensing furnaces/boiler equipment
- High-Impact ABS Thermoplastic Construction: Engineered to minimize rust and corrosion in moist environments
- Thermally Protected, 1/18 HP Fan Cooled Motor (115V): Energy efficient at only 2.5A; Improved cooling for longer life
- 1/4" x 3/8: Makes it easy to connect to existing drain tube
- Solid Polymer Float Switch For Start and Stop Operation: Vertical centrifugal pump design, for water up to 120F
- Safety Overflow Switch with (2) 5" Switch Lead Wires: Dual function NO and NC operation (Set to NO from factory)
- 1-Gallon Tank with (2) 1-1/8" Inlets: Suits the needs of a wide variety of residential/HVAC applications
- Stainless Steel Motor Shaft and Galvanized Steel Tank Cover: Sturdy design provides piece of mind for reliable operation
- 6' Power Cord with 3-Prong Plug
- 2-Year Limited Warranty
Dimensions and Measurements
Cord Length | 6 in. |
Depth | 12 in. |
Discharge Diameter | 0.375 in. |
Flow Rate (GPM) | 4.1 |

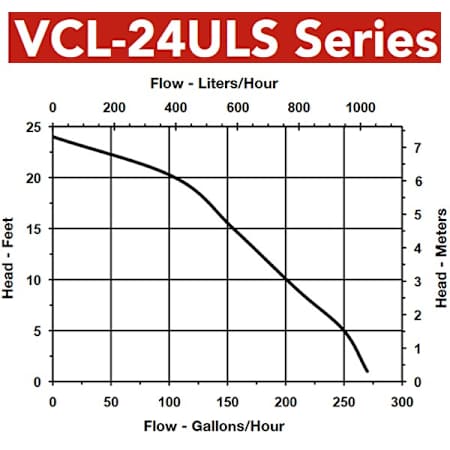

Flow Rate by Feet of Head | 4.33 gal / 3 ft, 4.5 gal / 1 ft, 4.17 gal / 5 ft |
Height | 10.6 in. |
Inlet Diameter | 1.125 in. |
Length | 12.11 in. |
Maximum Head Height | 24 in. |
Minimum Head Height | 1 in. |
Outlet Diameter | 0.375 in. |
Product Weight | 8 lbs. |
Shut Off Height | 24 in. |
Shut Off Pressure | 10.4 |
Water Connection | 1-1/8" |
Water Pressure (Max) | 10.4 PSI |
Width | 6 in. |
Dimensions and Measurements
Cord Length | 6 in. |
Depth | 12 in. |
Discharge Diameter | 0.375 in. |
Flow Rate (GPM) | 4.1 |
Flow Rate by Feet of Head | 4.33 gal / 3 ft, 4.5 gal / 1 ft, 4.17 gal / 5 ft |
Height | 10.6 in. |
Inlet Diameter | 1.125 in. |
Length | 12.11 in. |
Maximum Head Height | 24 in. |
Minimum Head Height | 1 in. |
Outlet Diameter | 0.375 in. |
Product Weight | 8 lbs. |
Shut Off Height | 24 in. |
Shut Off Pressure | 10.4 |
Water Connection | 1-1/8" |
Water Pressure (Max) | 10.4 PSI |
Width | 6 in. |
Characteristics and Features
Automatic | Yes |
Housing Material | Thermoplastic |
Impeller Material | Plastic |
Material | Plastic |
Material Casing | Plastic, Stainless Steel |
Material Housing | Plastic |
Shutoff Head in Feet | 24 |
Submersible | No |
Switch Type | Automatic |
Water Connection Type | NPT |
Characteristics and Features
Automatic | Yes |
Housing Material | Thermoplastic |
Impeller Material | Plastic |
Material | Plastic |
Material Casing | Plastic, Stainless Steel |
Material Housing | Plastic |
Shutoff Head in Feet | 24 |
Submersible | No |
Switch Type | Automatic |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 2.5 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.05 |
Maximum Fluid Temperature | 140 °F |
Maximum Operating Pressure (PSI) | 6.1 |
Voltage | 120 |
Wattage | 148 |
Electrical and Operational Information
Amperage | 2.5 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.05 |
Maximum Fluid Temperature | 140 °F |
Maximum Operating Pressure (PSI) | 6.1 |
Voltage | 120 |
Wattage | 148 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL |
Manufacturer Warranty | 1 Year |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL |
Manufacturer Warranty | 1 Year |
