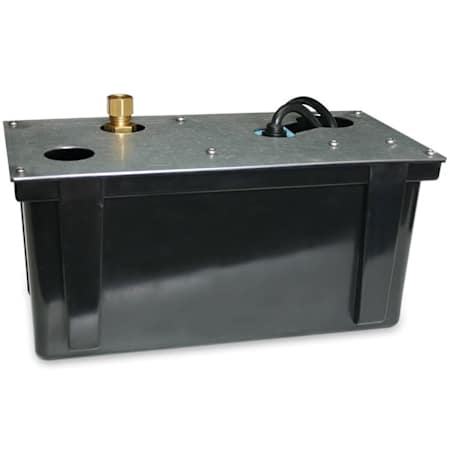

Little Giant 5.1 GPM Condensate Pump with Integrated Float Switch (26' Lift)
Model: 551320|Item: bci2130403
Details
Product Information:
- 3-ABS Series Condensate Removal Pump with Integrated Float Switch: Self-Contained, high-volume, high head design
- Ideal For Air Conditioning, Refrigeration and Dehumidification Applications: Shallow-pan tank is only 5.68" tall (6.5" Tall with discharge fitting)
- 1/12 HP High Performance Motor (115V): Oil-filled and hermetically sealed to prevent overheating
- Epoxy-Coated Cast Aluminum Pump Housing and Steel Tank Cover: Combined with a 1-gallon ABS tank makes this one robust pump
- 1/2" MNPT Discharge with Brass Check Valve: Compression fitting for 1/2" OD copper or rigid plastic tubing
- Integrated Unique Float Switch For Reliable Automatic Operation: Turns On @ 4.5" and Off @ 3.5" and provides switch security
- Nylon Volute and Impeller, Stainless Steel Shaft: No cast iron parts to rust or corrode, makes this pump last
- Removable Float Housing and Inlet Filter Screen: Allows this pump to be or cleared of debris to extend pump life
- 9-Foot Power Cord with Molded Plug: Makes this pump easy to install, plug and play, no hardwiring required
- 1-Year Limited Warranty
Dimensions and Measurements
Cord Length | 9 in. |
Depth | 12.03 in. |
Discharge Diameter | 0.5 in. |
Flow Rate (GPM) | 5.1 |
Flow Rate by Feet of Head | 1.83 gal / 20 ft, 4.83 gal / 3 ft, 4.16 gal / 10 ft, 4.66 gal / 5 ft, 5.16 gal / 1 ft |
Height | 6.5 in. |
Inlet Diameter | 1.125 in. |
Length | 12.3 in. |
Maximum Head Height | 26 ft. |
Minimum Head Height | 1 ft. |
Outlet Diameter | 0.5 in. |
Product Weight | 12 lbs. |
Shut Off Height | 26 in. |
Shut Off Pressure | 11.2 |
Water Connection | 1/2" |
Water Pressure (Max) | 11.2 PSI |
Width | 6 in. |
Dimensions and Measurements
Cord Length | 9 in. |
Depth | 12.03 in. |
Discharge Diameter | 0.5 in. |
Flow Rate (GPM) | 5.1 |
Flow Rate by Feet of Head | 1.83 gal / 20 ft, 4.83 gal / 3 ft, 4.16 gal / 10 ft, 4.66 gal / 5 ft, 5.16 gal / 1 ft |
Height | 6.5 in. |
Inlet Diameter | 1.125 in. |
Length | 12.3 in. |
Maximum Head Height | 26 ft. |
Minimum Head Height | 1 ft. |
Outlet Diameter | 0.5 in. |
Product Weight | 12 lbs. |
Shut Off Height | 26 in. |
Shut Off Pressure | 11.2 |
Water Connection | 1/2" |
Water Pressure (Max) | 11.2 PSI |
Width | 6 in. |
Characteristics and Features
Automatic | Yes |
Housing Material | Aluminum |
Impeller Material | Nylon |
Material Casing | Aluminum |
Material Housing | Aluminum |
Shutoff Head in Feet | 26 |
Submersible | No |
Switch Type | Automatic |
Water Connection Type | NPT |
Characteristics and Features
Automatic | Yes |
Housing Material | Aluminum |
Impeller Material | Nylon |
Material Casing | Aluminum |
Material Housing | Aluminum |
Shutoff Head in Feet | 26 |
Submersible | No |
Switch Type | Automatic |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 3.5 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.08 |
Maximum Fluid Temperature | 120 °F |
Maximum Operating Pressure (PSI) | 9.1 |
Voltage | 120 |
Wattage | 210 |
Electrical and Operational Information
Amperage | 3.5 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.08 |
Maximum Fluid Temperature | 120 °F |
Maximum Operating Pressure (PSI) | 9.1 |
Voltage | 120 |
Wattage | 210 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Manufacturer Warranty | 2 Year |
Warranty and Product Information
Approved for Commercial Use | Yes |
Manufacturer Warranty | 2 Year |
